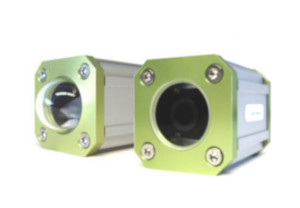

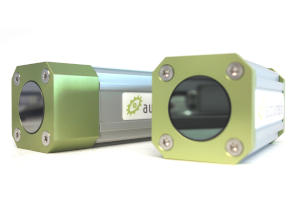

ENCLOSURES FOR CAMERAS

Colibri

Universal protective housing for cameras up to 30 x 30 mm cross section

Quick info

Compact size

Robust construction

Vibration proof mounting

90° image rotation

Work. dist. adjustment

IP66 rating

Excellent heat dissipation

  • Cam mount provides excellent heat dissipation
  • Compact dimensions and small dead weight
  • For cameras up to 30x30mm cross section
  • For lenses up to 39mm diameter
  • BK7 windows for cameras up to 2500nm
  • Sapphire windows for SWIR cameras up to 7µm
  • Germanium windows for LWIR cameras 7-14µm

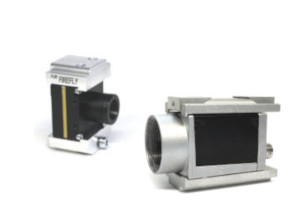

  • Special mount for Flir Boson/FireFly
  • Flat front lid for lenses with short design
  • Dome window for S-Mount Fisheye lenses
  • Custom length/color possible
  • Large number of accessories available
  • DRAWINGS & CAD DATA

    Enclosure Type Rear Wall A + B + C1 Drawing
    Step eDrawings2
    Colibri XS Image  PDF step e_drawing
    Colibri XS Flat Image  PDF step e_drawing
    Colibri S Image  PDF step e_drawing
    Colibri S Flat Image  PDF step e_drawing
    Colibri M Image  PDF step e_drawing
    Colibri M Flat Image  PDF step e_drawing
    Accessories Order No.: 20.000.092 (surcharge3) Drawing
    Step eDrawings2
    Colibri Dome Lid Image  PDF step e_drawing

    1. The step/eDrawings files contain all rear wall options (A, B, C). Not required cable glands can be hidden.
    2. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
    3. Ordered as "surcharge" the Dome comes assembled with the Colibri enclosure.
  • DOCUMENTS

  • ACCESSORIES

    Product Images Drawing Step eDrawings1

    Tilted reflector
    (Adapter bracket required)

    20.020.004

    Image Image Image PDF step e_drawing

    Air nozzle Colibri

    50.100.023

    Image Image Image PDF step e_drawing

    Parallel slim bracket 30mm

    10.062.830

    Image Image Image PDF step e_drawing

    Disk for 30mm
    rotational bracket
    for M6 csk screws

    6.032.388

    Image Image Image PDF step e_drawing

    Adapter bracket
    30mm to 40mm dovetail

    10.062.979

    Image Image Image PDF step e_drawing

    Adapter profile
    30mm to 40mm dovetail

    6.240.001

    Image Image Image PDF step e_drawing

    30mm Tripod adapter plate
    for 1/4" and 3/8" screws

    6.031.935

    Image Image Image PDF step e_drawing

    Front Adapter
    30mm dovetail

    6.036.200

    Image Image Image PDF step e_drawing

    90° Mounting Plate
    30mm dovetail

    6.036.199

    Image Image Image PDF step e_drawing

    Small angle 30mm

    10.034.607

    Image Image Image PDF step e_drawing

    Medium angle 30mm

    10.039.296

    Image Image Image PDF step e_drawing

    Mounting Kit 21

    5.210.000

    Image Image Image PDF step e_drawing

    Mounting Kit 22

    5.220.000

    Image Image Image PDF step e_drawing

    Mounting Kit 24m

    5.240.000m

    Image Image Image PDF step e_drawing

    Mounting Kit 26m

    5.260.000m

     Image Image Image PDF step e_drawing

    Mounting Kit 27

    5.270.000

    Image Image Image PDF step e_drawing

    Mounting Kit 28

    5.280.000

    Image Image Image PDF step e_drawing

    Mounting Kit 29

    5.290.000

    Image Image Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • FOR CAMERAS

    • Adimec NORITE
    • AOS Promon 750
    • Attollo Phoenix™
    • AVT Alvium, Guppy, Mako
    • Basler ace, ace2 Pro
    • Baumer CX
    • CIS VCXP, 2CXP
    • Cognex Insight Micro
    • Crevis MA/MC/MG/MU/MV
    • Dahua MV-A3124MCG100E
    • Dalsa Calibir DX
    • Datalogic M100
    • Delta DMV-C
    • Dream Chip ATOM one mini
    • Emergent Eros
    • Festo SBPB
    • Flir Blackfly, Firefly, Boson
    • HIK CS/CE/CU
    • IDS ueye-(X)CP
    • Imaging Source USB33
    • iRayple A/AE
    • Jai Go/GoX
    • Keyence CV-200C
    • Leopard Imaging SerDes
    • Lucid Triton, Phoenix
    • NET iCube
    • NIT MN1003
    • Omron STC
    • OPT rolling/global shutter cameras
    • Photonfocus MV0
    • Sick PicoCam
    • Sierra-Olympia EVIDIR
    • SmartMore SMI-CGi-640P-01
    • Ximea MQ
