ENCLOSURES FOR LASERS

PROECTIVE LASER ENCLOSURE

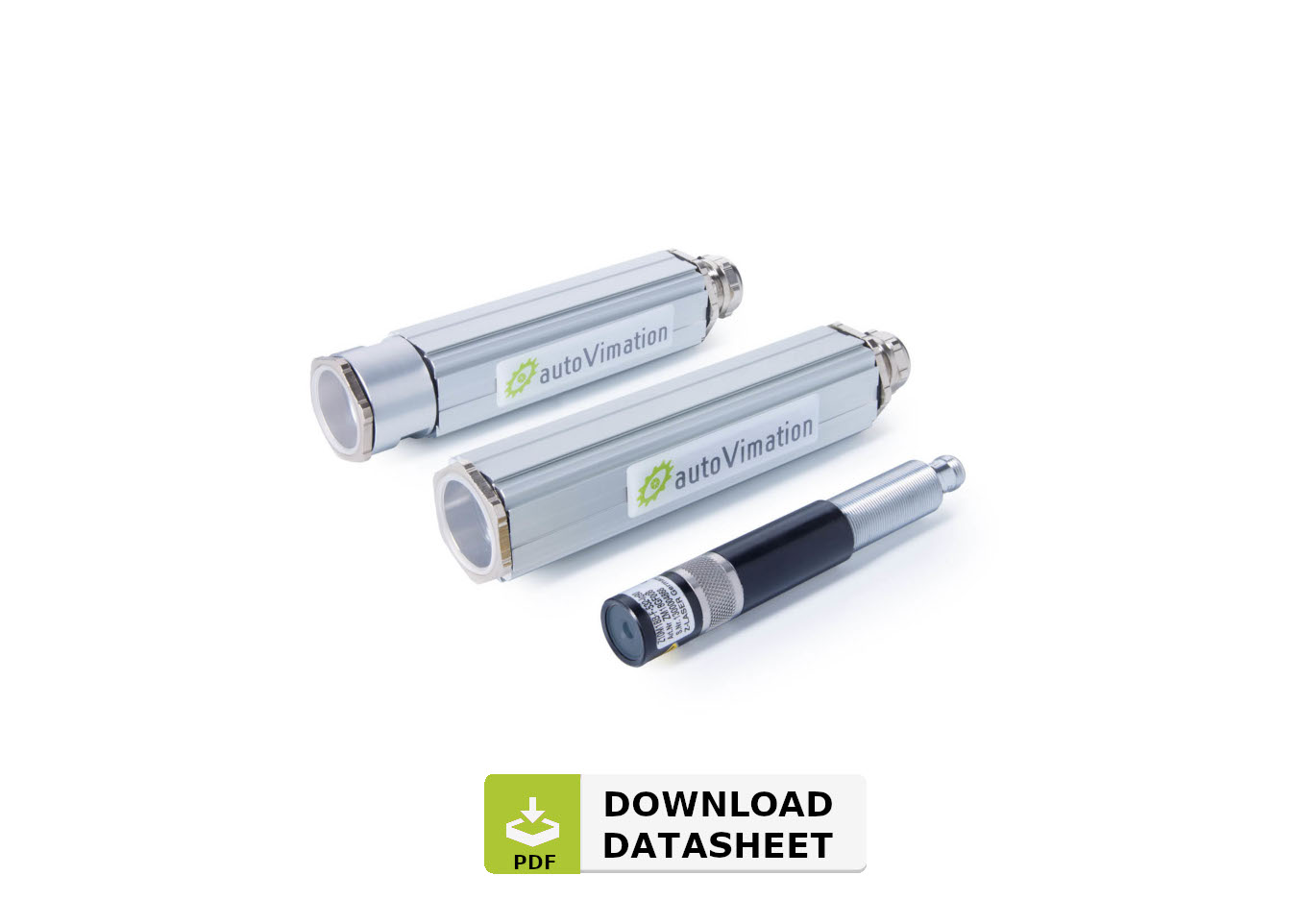

IP66 standard laser enclosure for 19/20mm diameter laser or cameras

Quick info

Compact size

Robust construction

Vibration-proof mounting

90° image rotation

Work.dist. adjustment

IP66 rating

Excellent heat dissipation

  • Internal mount provides good heat dissipation
  • For cylindrical lasers/cams with 19-20mm dia.
  • Enclosure extension for easy lens access
  • BK7 windows for wavelength up to 2500nm
  • Sapphire windows for wavelength up to 7µm
  • Air nozzle option
  • Water cooling option
  • Adaptable to 30 or 40mm dovetails
  • Multiple mounting accessories

  • DRAWINGS & CAD DATA

    Enclosure Type Layout Drawing
    		 Step eDrawings1
    Laser Enclosure 120mm Image  PDF step e_drawing
    Laser Enclosure 150mm Image  PDF step e_drawing
    Laser Enclosure 180mm Image  PDF step e_drawing
    Extension 25mm   step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer

  • DOCUMENTS

    PDFDatasheet

    PDFAssembly Instructions

  • ACCESSORIES

    Product Images Drawing Step eDrawings1

    Air nozzle
    for laser enclosures
    50.100.020

    		 Image Image Image PDF step e_drawing

    Parallel slim
    bracket 20mm
    10.049.049

    		 Image Image Image PDF step e_drawing
    Adapter bracket
    20mm to 40mm profile
    40.049.051    		 Image Image Image PDF step e_drawing
    Adapter to 40mm profile
    40.001.004    		 Image Image Image PDF step e_drawing
    Vertical laser mount
    40.001.005    		 Image Image Image PDF step e_drawing
    Rotational laser mount
    40.001.006    		 Image Image Image PDF step e_drawing
    13mm rotational laser mount
    40.001.007    		 Image Image  Image PDF step e_drawing
    29mm vertical laser mount
    40.001.008    		  Image Image Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer

  • FOR LASERS/CAMERAS

    • Axis P1214
    • Coherent Stingray™
    • DLC Industrial Laser Modules
    • Global Laser Lyte-MV
    • Keypoint KL200 series
    • Laser Components Flexpoint ruggedized
    • Limab PreciLine
    • Marshall CV228
    • Osella Streamline
    • R-Laser SET
    • Picotronic LD532
    • WAT-240E (modified)
    • Vulcan M18
    • Z-Laser Z10, ZM18
    • uvm.
