ENCLOSURES FOR CAMERAS

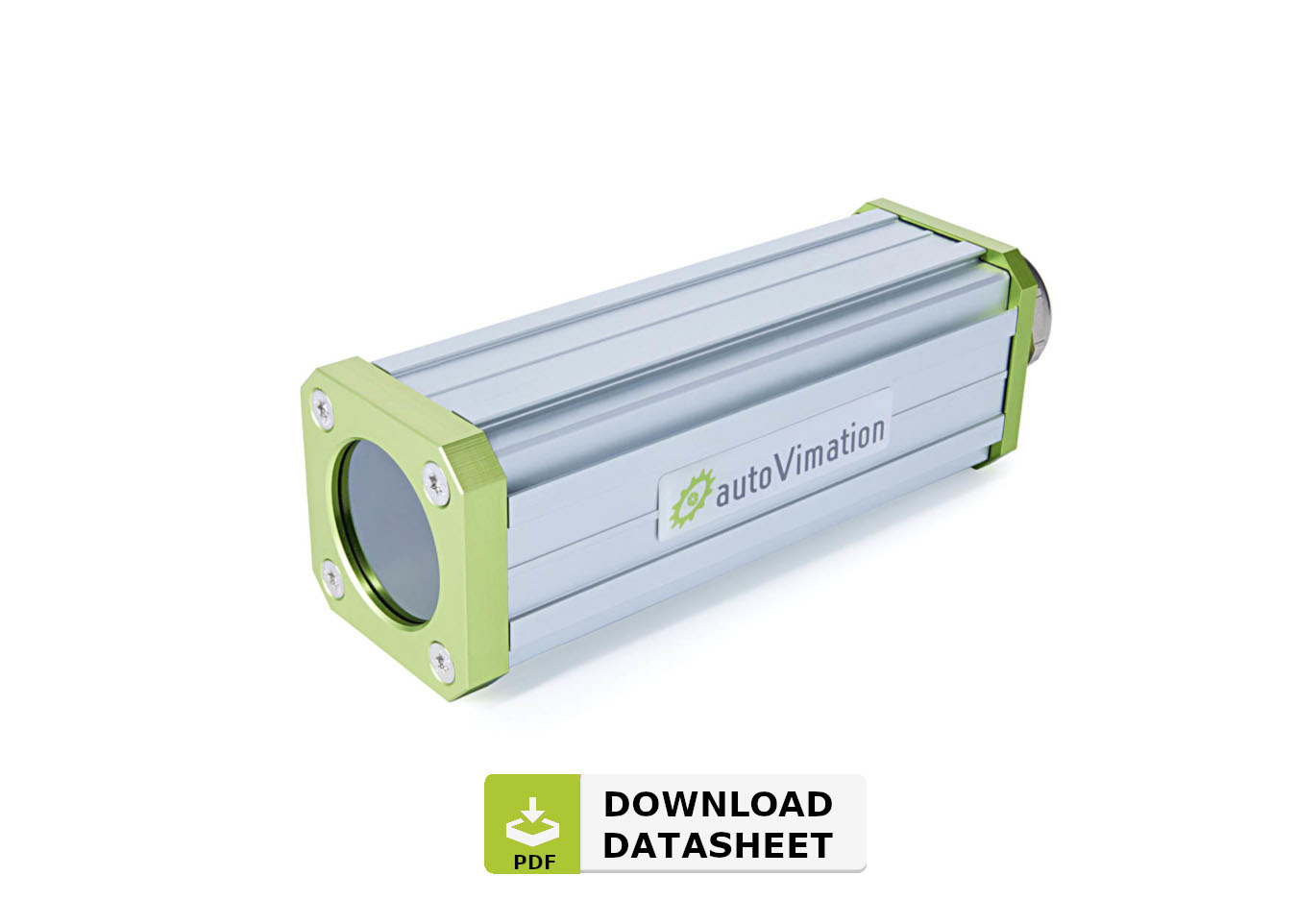

GECKO

Universal protective housing for cameras up to 44 x 44mm cross-section

Quick info

Compact size

Robust construction

Vibration-proof mounting

90° image rotation

Work.dist. adjustment

IP66 rating

Excellent heat dissipation

  • Good heat dissipation
  • Cams up to 44x44 or 39x53mm cross section
  • For lenses up to 55mm diameter
  • Small dead weight
  • Robust and slim design
  • BK7/acrylic windows for cameras up to 2500nm
  • Sapphire windows for SWIR cameras up to 7µm
  • Germanium windows for LWIR cameras 7-14µm
  • Thanks to enclosure adapter larger Orca lids, extensions and Meganova ring light usable
  • Heater or water cooling option
  • Custom length and color possible
  • Easy window exchange
  • Internal mount adaptable for board cameras
  • Large number of accessories available
  • DRAWINGS & CAD DATA

    Enclosure Type Rear Wall A + C1 Drawing
    Step eDrawings2
    Gecko
    Custom length up to 300mm
    Image  PDF step e_drawing

    1. The step/eDrawings files contain all rear wall options (A, C). Not required cable glands can be hidden.
    2. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • DOCUMENTS

  • ACCESSORIES

    Product Images Drawing Step eDrawings1

    Tilted reflector

    20.020.004

    Image Image Image PDF step e_drawing

    Sun roof S

    20.010.001
    Image Image Image PDF step e_drawing

    Sun roof M

    20.010.002
    Image Image Image PDF step e_drawing

    Sun roof L

    20.010.003
    Image Image Image PDF step e_drawing

    Air nozzle

    50.100.025

    Image Image Image PDF step e_drawing

    2" wind curtain

    50.100.010

    Image Image Image PDF step e_drawing

    Tube for 2" wind curtain

    50.100.017

    Image Image Image PDF step e_drawing

    Shutter

    50.200.010

    Image Image Image PDF step e_drawing

    Water cooling module

    60.100.010

    Image Image Image PDF step e_drawing

    Controlled heating plate
    (from size S)

    70.100.018
    Image Image Image PDF step e_drawing

    Enclosure Adapter

    Orca/Gecko

    15.030.002

    Image Image Image PDF step e_drawing



    Mounting Kit 1

    5.010.000

    Image Image Image PDF step e_drawing

    Mounting Kit 2

    5.020.000

    Image Image Image PDF step e_drawing

    Mounting Kit 6

    5.060.000

    Image Image Image PDF step e_drawing

    Mounting Kit 7

    5.070.000

    Image Image Image PDF step e_drawing

    Mounting Kit 9

    5.090.000

    Image Image Image PDF step e_drawing

    Mounting Kit 10

    5.100.000

    Image Image Image PDF step e_drawing

    Mounting Kit 15

    5.150.000

    Image Image Image PDF step e_drawing

    Mounting Kit 16m

    5.160.000m

    Image Image Image PDF step e_drawing

    Mounting Kit 17m

    5.170.000m

    Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • FOR CAMERAS

    • Flir Ax5
    • Seek Inspection CAM
    • Tamron MP1010, MP3010
    • Vision Compontents VC4XXX
    • Cameras with non-rectangled shape
    • Board cameras
    • And many more...
