ENCLOSURES FOR CAMERAS

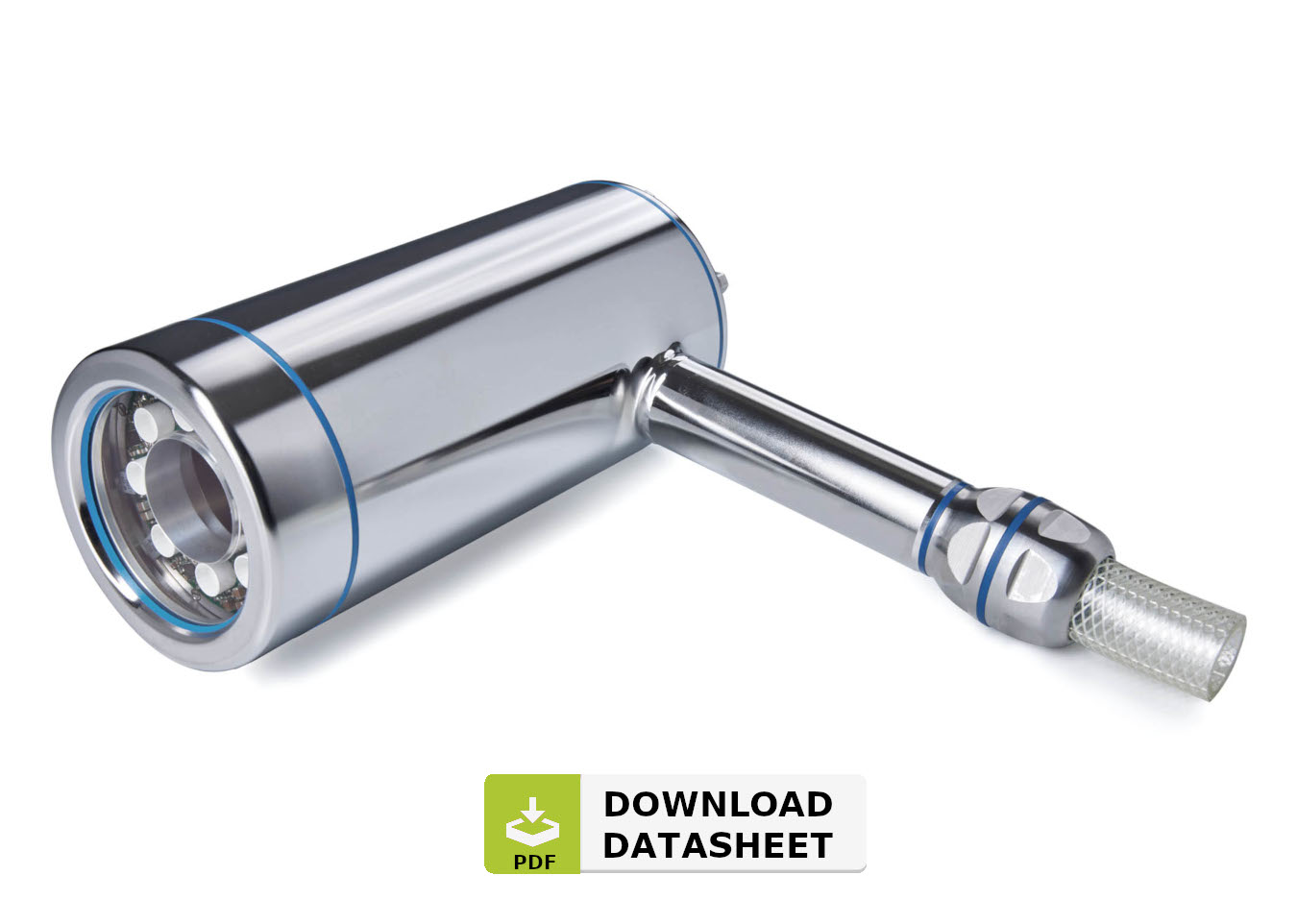

SHARK

High grade stainless steel enclosure with IP69K protection and hygienic design

Quick info

V4A stainless steel

Compact size

Robust construction

Vibration-proof mounting

IP69K rating

Hygienic design

Excellent heat dissipation

  • V4A stainless steel housing
  • Hygienic design with IP69K protection
  • Cam mount provides excellent heat dissipation
  • For cameras up to 62x62mm cross section
  • For lenses up to 85mm diameter
  • Enclosure extensions for easy lens access
  • Acrylic/BK7 windows for cameras up to 2500nm
  • Germanium window for LWIR cameras 7-14µm
  • Easy window exchange
  • Meganova ring light usable
  • Easy installation with "Hygienic Building Kit"
  • Large number of accessories available
  • DRAWINGS & CAD DATA

    Enclosure Type Layout Drawing
    Step1 eDrawings2
    Shark S Image  PDF step e_drawing
    Shark M Image  PDF step e_drawing
    Shark L Image  PDF step e_drawing

    1. The step/eDrawings files contain all side and rear cable exit options. Not required parts can be hidden.
    2. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • DOCUMENTS

  • ACCESSORIES

    Product Images Drawing Step eDrawings1

    Position ring

    20.040.002

    Image Image Image PDF step e_drawing

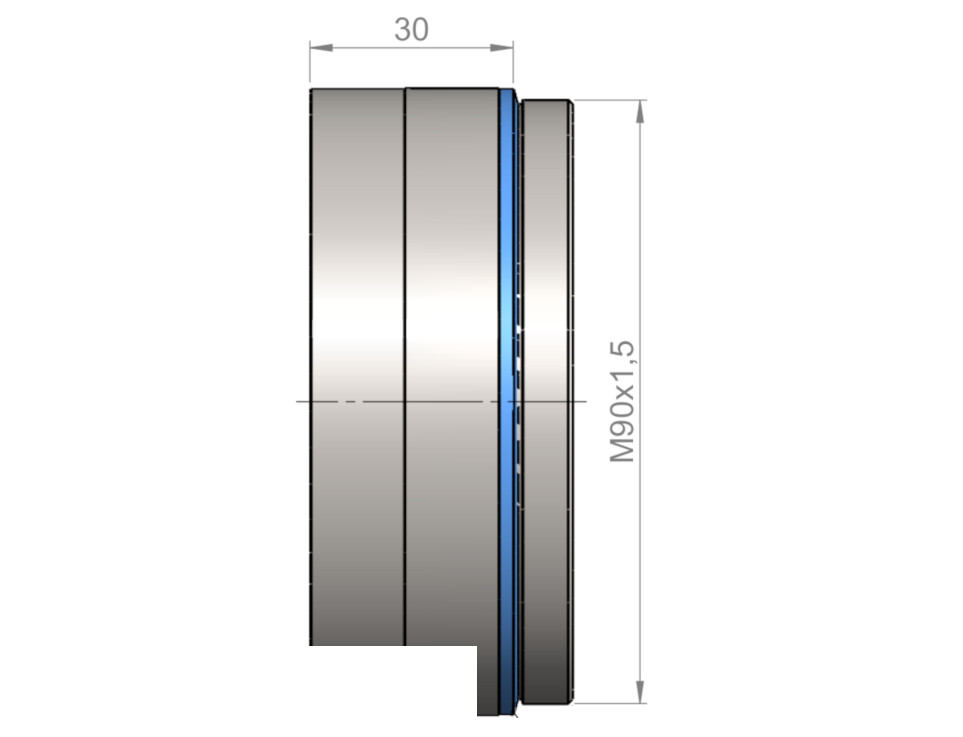

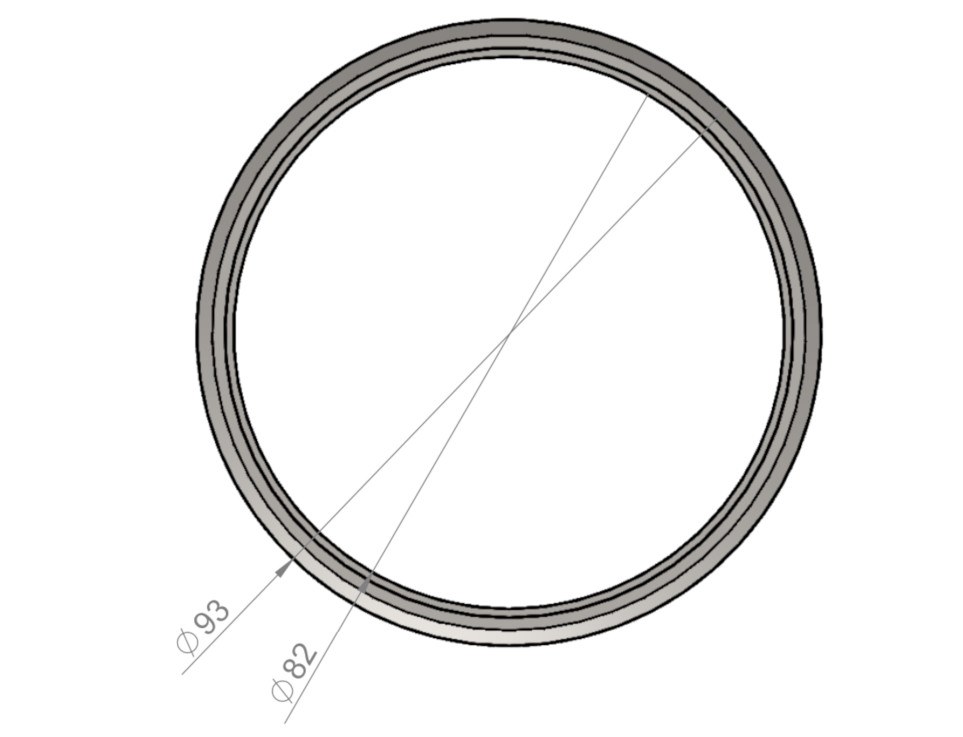

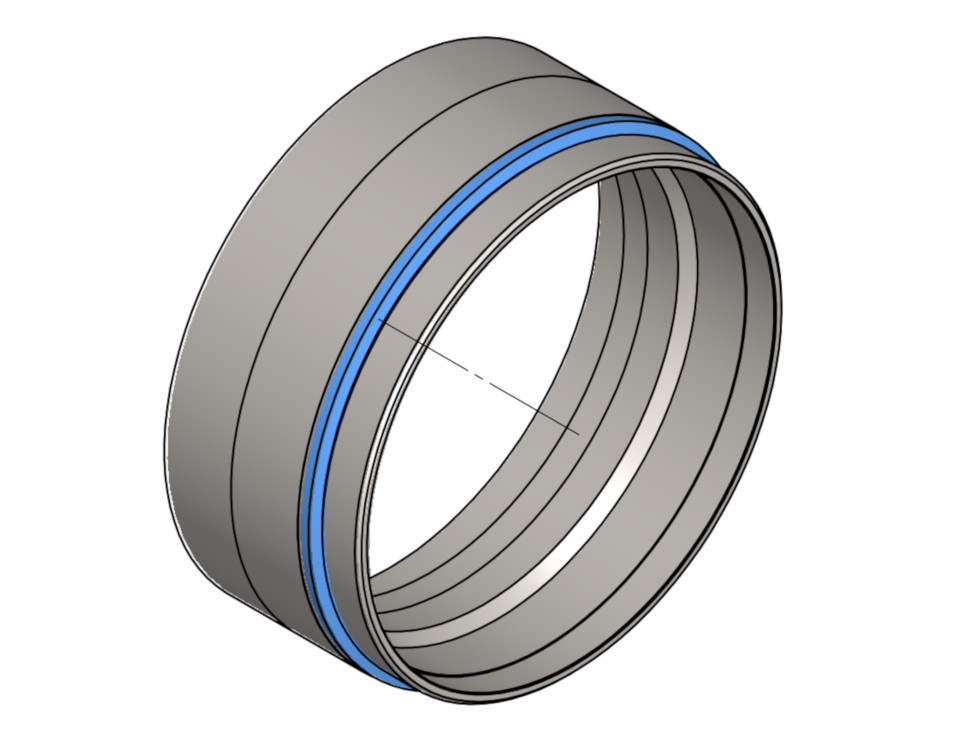

    30mm extension

    80.020.030


    Image  Image Image  PDF  step  e_drawing

    T-piece tube connector

    Hygienic PLUS

    80.006.007

    Image Image Image PDF step e_drawing

    90° elbow tube connector

    Hygienic PLUS

    80.006.001

    Image Image Image PDF step e_drawing

    Front mount foot

    Hygienic PLUS

    80.006.004

    Image Image Image PDF step e_drawing

    M40 hygienic mount

    80.006.000

    Image Image Image PDF step e_drawing

    Tube mount V2A

    80.006.006

    Image Image Image PDF step e_drawing

    Tube connector 90° V2A

    80.006.002


     Image Image  Image PDF  step  e_drawing

    Tube end sleeve

    80.005.025 + 80.005.018 + 20.000.103

    Image Image Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • FOR CAMERAS

    The Shark is also suitable for all smaller cameras that are not listed here.
    • AccuOpt ThermCAM
    • Aida UHD 3XL/200/6G-200
    • Aivion AZM-FS30L
    • Alkeria Celera, Necta
    • Antelope Pico
    • AOS Promon 502
    • ATINY CXZK-G4-U
    • Automation Technology C5, C6
    • AVT Prosilica
    • Basler Racer
    • Baumer HXC, LX
    • Blue Vision BV-C3xxH
    • Bayspec GoldenEyeTM
    • Bresser MikroCam SP
    • Burg Guard BWFC-541KLNN
    • CIS VCC-12CXP4x
    • Cognex Dataman 300
    • Contrastech DM-J500U
    • Crevis HG, HV, TC
    • Cubert ULTRIS X-Line
    • Daheng Mars
    • Dalsa Boa, Falcon, Linea Lite, Nano CXP
    • Datalogic M580
    • Ditect HAS-U1, HAS-U2
    • DVS PICO
    • E2V DIVIINA
    • Edevis EDECAM 640L HS
    • Emergent HB, Pace
    • EomaxTM WolfpackTM CK, CL, CT
    • First Light C-Red 3
    • Flir A50, A70, A3xx, Oryx
    • Ghopto GH-SW320
    • HIK MV-CL022-91GM, MV-CI
    • Hitachi HV-Fxxx
    • Hydac HVT 1000
    • ICI FMX, Titan 1280 P
    • IDS ueye-FA
    • IDT Crash Cam MiniTM
    • IFM O2Dxxx
    • Imagine Optic CAMSQUARED
    • Imaging Source DFK 51AU02, DMK Z12
    • Imago Vision Sensor PV3
    • Imperx Bobcat
    • IndigoVision UX Box
    • InfiRay FTII
    • Infratec ImageIR, TarisIR® mini 600, PIR uc 605
    • INO MICROXCAM-384i-MLWIR
    • IntelgicTM RGML1k25GigE29.4
    • I-Pro WV-U11xxx
    • Jadak Allegro USB
    • Jai AD-130GE
    • Kappa Zelos
    • Kaya Iron, Mercury Swift
    • Keyence IV2, IV3, IV-G, IV-HG, XG-HL
    • LaVision Imager CX, sCMOS
    • LD-PD INC InGaAs
    • Leopard Imaging LI-IMX530-GMSL2-NL
    • Leuze IVS 108
    • LightPath Mantis
    • LMP HD1200
    • Lucid Atlas, Helios
    • Marshall CV355-10X
    • Micro-Epsilon TIM
    • Micro Tasarim MT-MicroCAM2-SW6415
    • NET iam
    • NIT MC1003, WiDy SWIR/SenS, SenS 1280
    • Novitec i-Nova2/i-Nova4
    • Omron FS, MicroHAWK
    • Opto Engineering Itala
    • Optris Pi
    • Optronis CycloneFiber-2
    • Panasonic GP-US932H
    • Photonis Nocturne U3
    • Photonfocus MV-1, MV-3, MV-4
    • Pixellink PL-B781, PL-95xx
    • Pomeas VGA/HDMI Cameras
    • Raptor Owl
    • Salrayworks focal-, ray-, wideSHOT
    • Satir UPC
    • Seek Guardian G300
    • Sekai 4K ballistic camera
    • Sensopart V10, V20
    • Sensors Unlimited 1280JSX
    • Shodensha BA200HD
    • Sick GLS100, Ranger E50, Ranger 3
    • Silios CMS, Toucan
    • Sinacam HDC-1
    • Skoopia Block Cameras
    • SlomoTV mini-II-vR-Cam
    • Sony FCB
    • SVS Vistek EXO, FXO
    • SWIR Vision Systems Acuros CQD
    • Tamron LW10F
    • Toshiba Teli EX
    • ToupTek IUD
    • Vieworks VTC
    • ViewZ VZ-BCHS
    • Vision&Control pictor M
    • Xenics Gobi 640, Ceres T 640
    • Ximea xiX (EF-Mount)
    • Xiris XVC-1000/1100
    • and many more
