ENCLOSURES FOR CAMERAS

STINGRAY

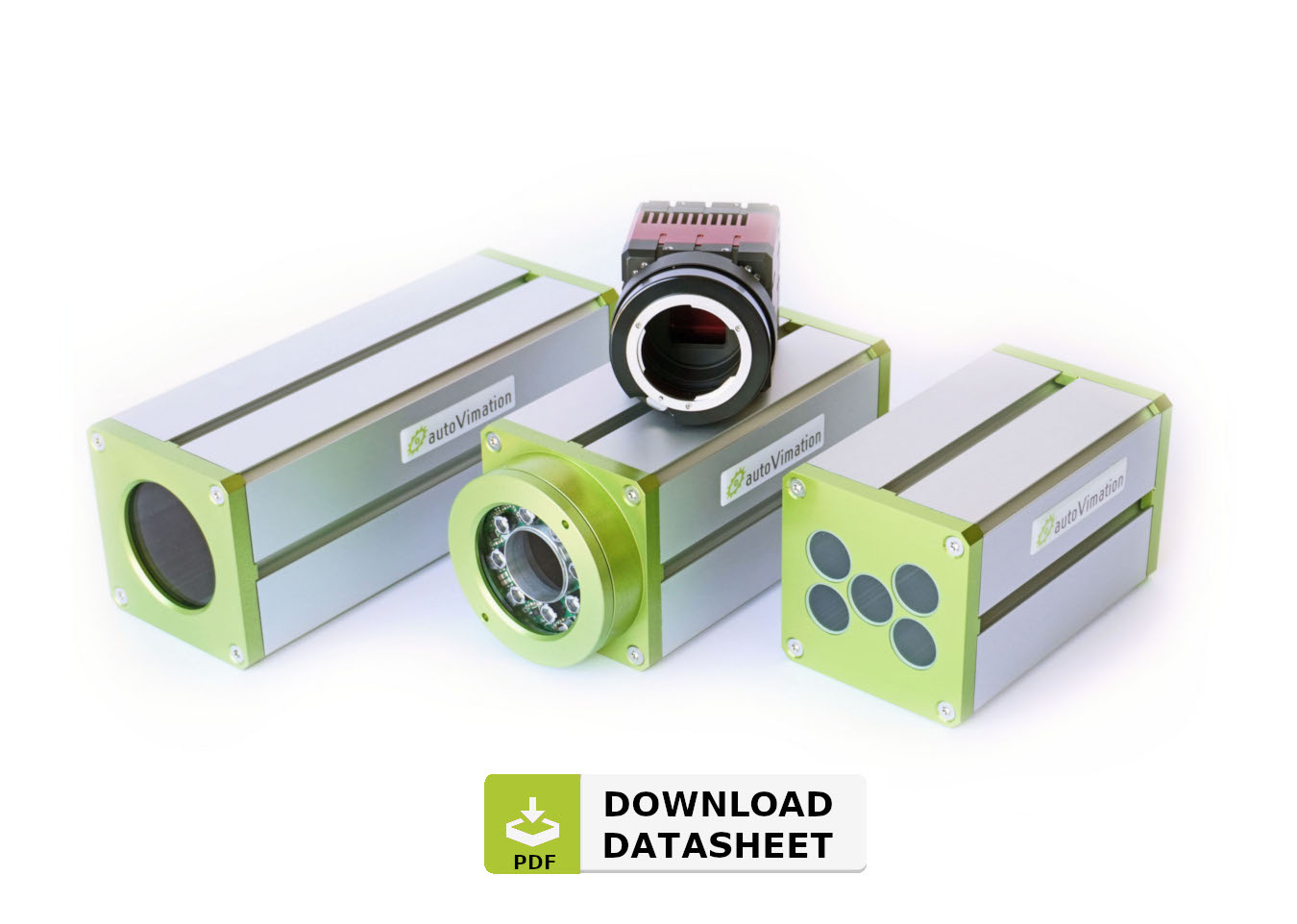

IP66 protection for larger cameras with 75 x 75mm cross section

Quick info

Robust construction

Vibration-proof

90° image rotation

Work.dist. adjustment

IP66 rating

Excellent heat dissipation

  • Cam mount provides excellent heat dissipation
  • For cameras up to 75x75mm cross section
  • For lenses up to 78mm diameter
  • Optimized for Meganova Ring Light
  • Small dead weight
  • BK7/acrylic windows for cameras up to 2500nm
  • Sapphire windows for SWIR cameras up to 7µm
  • Germanium windows for LWIR cameras 7-14µm
  • Dome window for fisheye lenses
  • Special lid for IFM/Lucid ToF cameras
  • Enclosure extensions for easy lens access
  • Optionally pneumatic shutter and air blower
  • Heater or water cooling option
  • Custom color possible
  • Large number of accessories available
  • DRAWINGS & CAD-DATA

    Enclosure Type Rear Wall A + C Drawing
    Step1 eDrawings2
    Stingray S Image  PDF step e_drawing
    Stingray M Image  PDF step e_drawing
    Stingray L Image  PDF step e_drawing
    Stingray S Flange Image  PDF step e_drawing
    Stingray M Flange Image  PDF step e_drawing
    Stingray L Flange Image  PDF step e_drawing
    Accessories for flange version Image Product Number
    Step eDrawings2
    M72 Front Lid
    surcharge (based on 3" Front Lid)
    Image 20.040.018 step e_drawing

    Dome Front Lid
    surcharge (based on 3" Front Lid)
    Image 20.040.015 step e_drawing

    1. The step/eDrawings files contain all rear wall options (A, B, C). Not required cable glands can be hidden.
    2. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • DOCUMENTS

  • ACCESSORIES

    Product Images Drawing Step eDrawings1

    30mm Extension

    15.030.030

    Image Image Image PDF step e_drawing

    60mm Extension

    15.030.085

    Image Image Image PDF step e_drawing

    Sun Roof S

    20.011.001

    Image Image Image PDF step e_drawing

    Sun Roof M

    20.011.002

    Image Image Image PDF step e_drawing

    Sun Roof L

    20.011.003

    Image Image Image PDF step e_drawing

    Dragon High Power Air Nozzle

    for Orca, Megalodon, Stingray, Elefant

    50.100.030

    Image Image Image PDF step e_drawing

    3" Wind Curtain

    50.100.011

    Image Image Image PDF step e_drawing

    Tube for 3" wind curtain

    50.100.018

    Image Image Image PDF step e_drawing

    Pneumatic Shutter

    50.200.021
    + 6.041.145
    please download 6.041.141

    Image Image Image PDF step e_drawing

    Water Cooling Module
    (from size M)

    60.100.010

    Image Image Image PDF step e_drawing

    Controlled Heating Plate
    (from size S)

    70.100.011

    Image Image Image PDF step e_drawing



    Mounting Kit 1

    5.010.000

    Image Image Image PDF step e_drawing

    Mounting Kit 2

    5.020.000

    Image Image Image PDF step e_drawing

    Mounting Kit 6

    5.060.000

    Image Image Image PDF step e_drawing

    Mounting Kit 7

    5.070.000

    Image Image Image PDF step e_drawing

    Mounting Kit 9

    5.090.000

    Image Image Image PDF step e_drawing

    Mounting Kit 10

    5.100.000

    Image Image Image PDF step e_drawing

    Mounting Kit 15

    5.150.000

    Image Image Image PDF step e_drawing

    Mounting Kit 16m

    5.160.000m

    Image Image Image PDF step e_drawing

    Mounting Kit 17m

    5.170.000m

    Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • FOR CAMERAS

    The Stingray is also suitable for all smaller cameras that are not listed here.
