MOUNTING & ACCESSORIES

Climatisation for enclosures

Use of our housings even in extreme temperature conditions from -40°C to +180°C

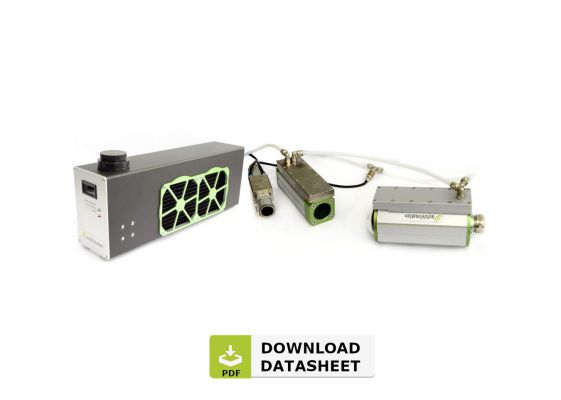

    Water Cooling Unit
  • Perfect for use in climate chambers
  • Cooling or heating thanks to heat exchanger
  • Closed water circuit with compact cooling modules

  • Climatisation of the camera by means of heat conduction through the housing wall
  • Permanent temperature monitoring with emergency shutdown possible
    Heating Plate/Sun Roof
  • Ideal for outdoor use
  • Target temperature adjustable, no overheating possible
  • Climatisation of the camera by means of heat conduction through the housing wall

  • DRAWINGS & CAD DATA

    Product Layout Drawing
    		 Step eDrawings1

    Water cooling unit

    60.101.520

    		 Image Image  Image PDF step e_drawing

    Feet for Water cooling unit

    60.101.521

    		 Image Image  Image PDF step e_drawing

    Water cooling module

    for Salamander, Gecko Orca
    (from size M) and Megalodon

    60.100.010

    		 Image Image Image PDF step e_drawing

    Water cooling module

    for Mammoth

    60.100.020    		 Image Image Image PDF step e_drawing

    Water cooling module

    for Laser enclosures

    60.100.030    		 Image Image Image PDF step e_drawing

    Controlled heating plate

    for Salamander (from size S),
    Gecko, Orca, Stingray,
    Megalodon and Elefant

    70.100.018    		 Image Image Image PDF step e_drawing

    Sun roof S

    for Salamander and Gecko

    20.010.001

    		 Image Image Image PDF step e_drawing

    Sun roof M

    for Salamander and Gecko

    20.010.002    		 Image Image Image PDF step e_drawing

    Sun roof L

    for Salamander and Gecko

    20.010.003    		 Image Image Image PDF step e_drawing

    Sun roof S

    for Orca, Megalodon and Stingray

    20.011.001

    		 Image Image Image PDF step e_drawing

    Sun roof M

    for Orca, Megalodon and Stingray

    20.011.002

    		 Image Image Image PDF step e_drawing

    Sun roof L

    for Orca, Megalodon and Stingray

    20.011.003

    		 Image Image Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer

  • DOCUMENTS

    PDFDatasheet

    PDFCooling Unit Manual

    PDFHeating Plate Manual
