ENCLOSURES FOR CAMERAS

DOLPHIN

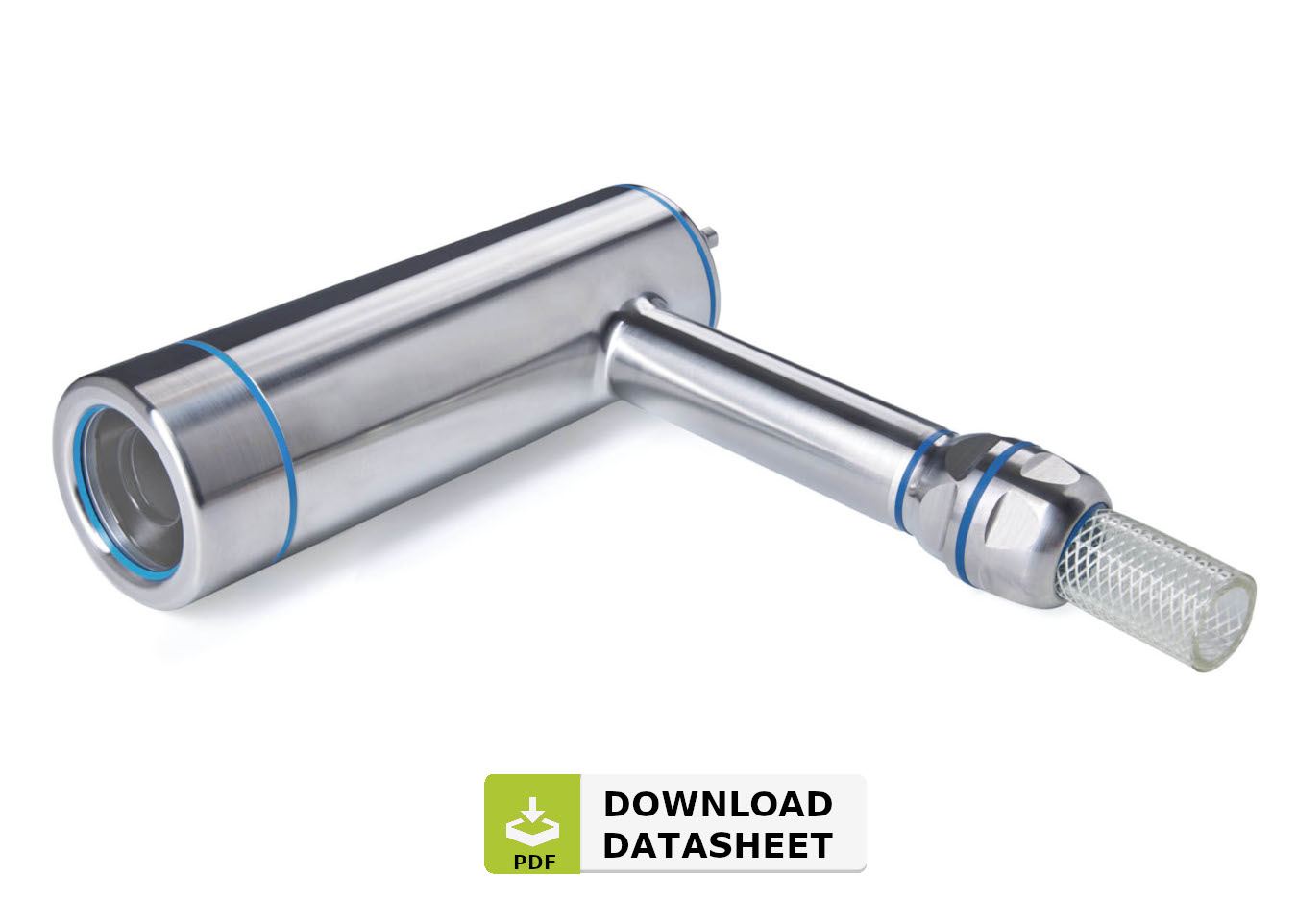

Stainless steel enclosure with IP69K protection and hygienic design

Quick info

V4A stainless steel

Compact size

Robust construction

Vibration-proof mounting

IP69K rating

Hygienic design

Excellent heat dissipation

  • V4A stainless steel housing
  • Hygienic design with IP69K protection
  • Cam mount provides excellent heat dissipation
  • For cameras up to 40x40mm cross section
  • For lenses up to 55mm diameter
  • Enclosure extensions for easy lens access
  • Acrylic/BK7 windows for cameras up to 2500nm
  • Sapphire windows for SWIR cameras up to 7µm
  • Germanium window for LWIR cameras 7-14µm
  • Easy installation with "Hygienic Building Kit"
  • Easy window exchange
  • Large number of accessories available

  • DRAWINGS & CAD DATA

    Enclosure Type Layout Drawing
    		 Step1 eDrawings2
    Dolphin S Image  PDF step e_drawing
    Dolphin M Image  PDF step e_drawing
    Dolphin L Image  PDF step e_drawing

    1. The step/eDrawings files contain all side and rear cable exit options. Not required parts can be hidden.
    2. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer

  • DOCUMENTS

    PDFDatasheet

    PDFHygienic Building Kit Brochure

    PDFAssembly Instructions

  • ACCESSORIES

    Product Images Drawing Step eDrawings1

    Position ring

    20.020.003

    		 Image Image Image PDF step e_drawing

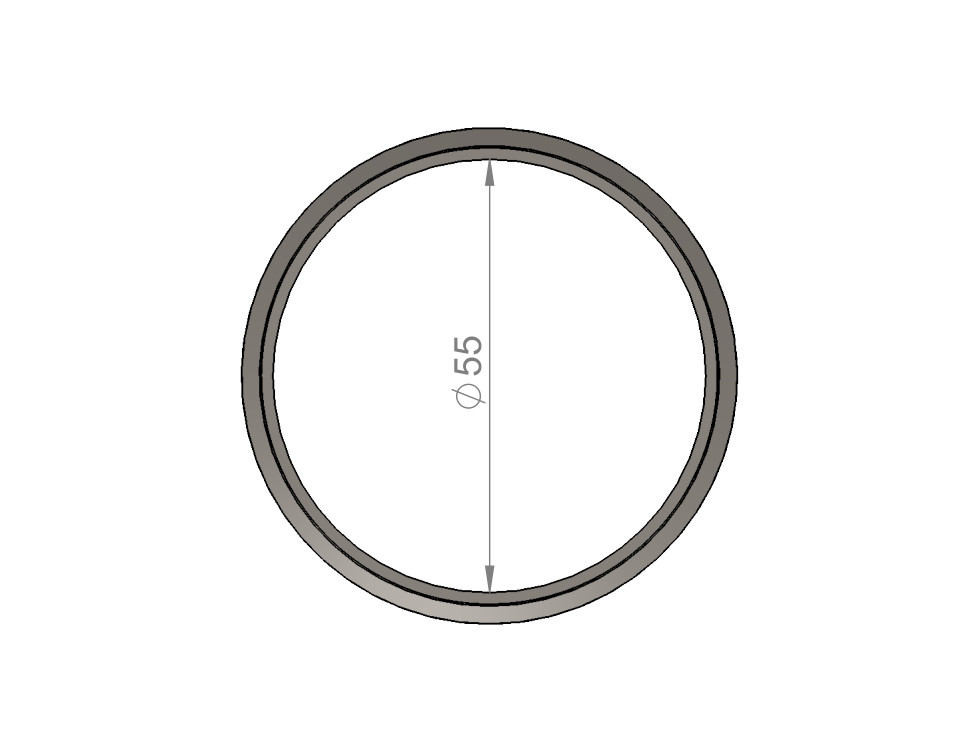

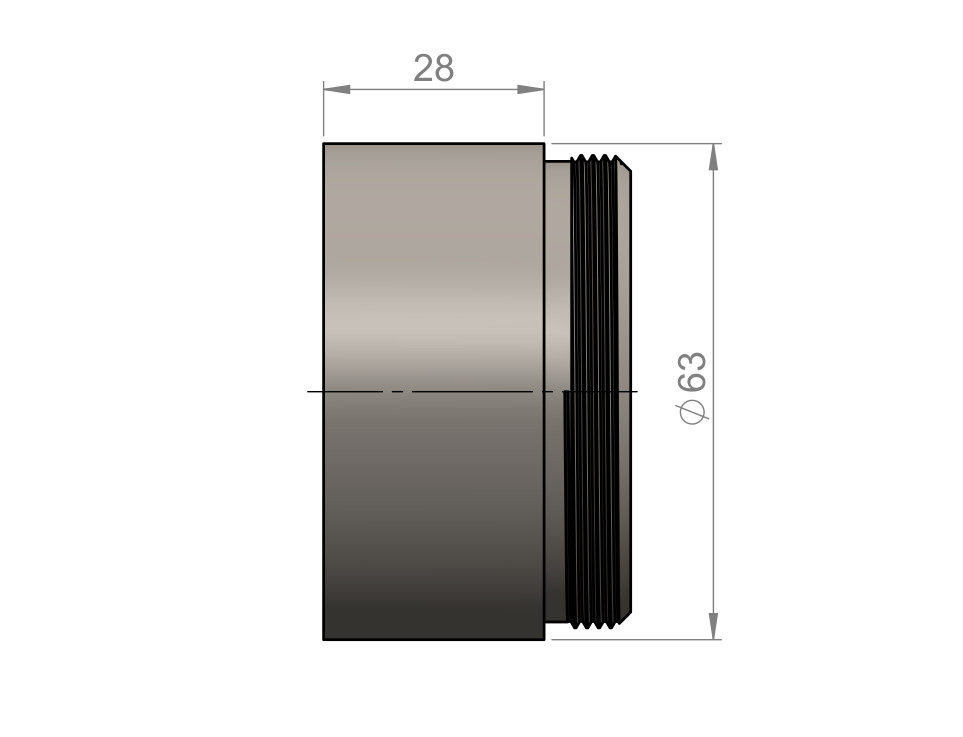

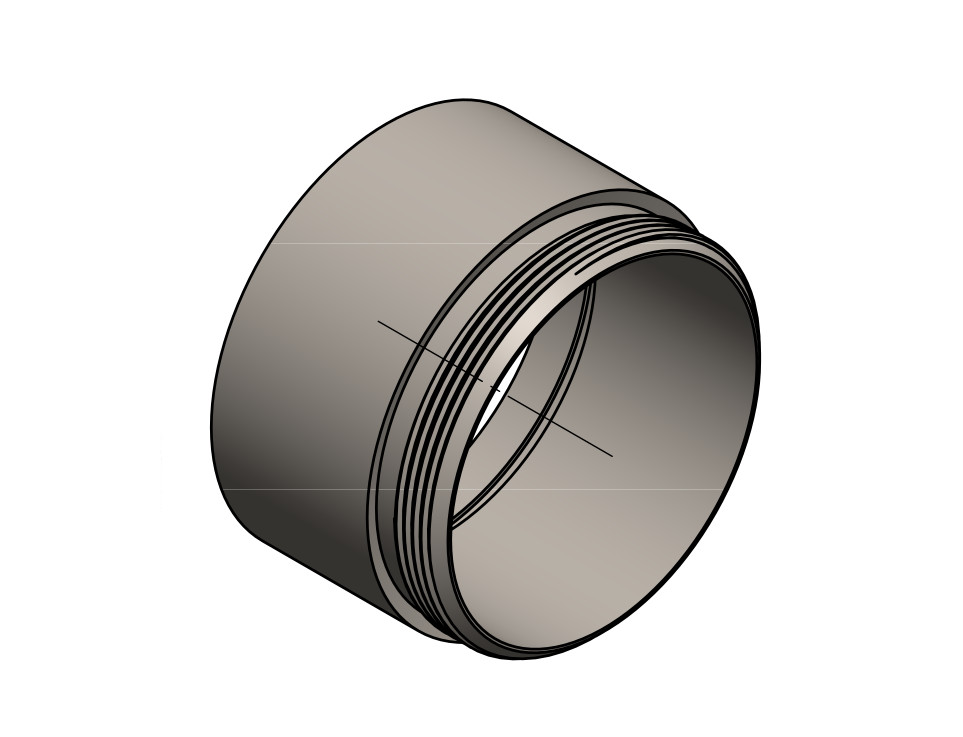

    30mm extension

    80.005.030

    		 Image  Image Image PDF  step e_drawing

    T-piece tube connector

    Hygienic PLUS

    80.006.007

    		 Image Image Image PDF step e_drawing

    90° elbow tube connector

    Hygienic PLUS

    80.006.001

    		 Image Image Image PDF step e_drawing

    Front mount foot

    Hygienic PLUS

    80.006.004

    		 Image Image Image PDF step e_drawing

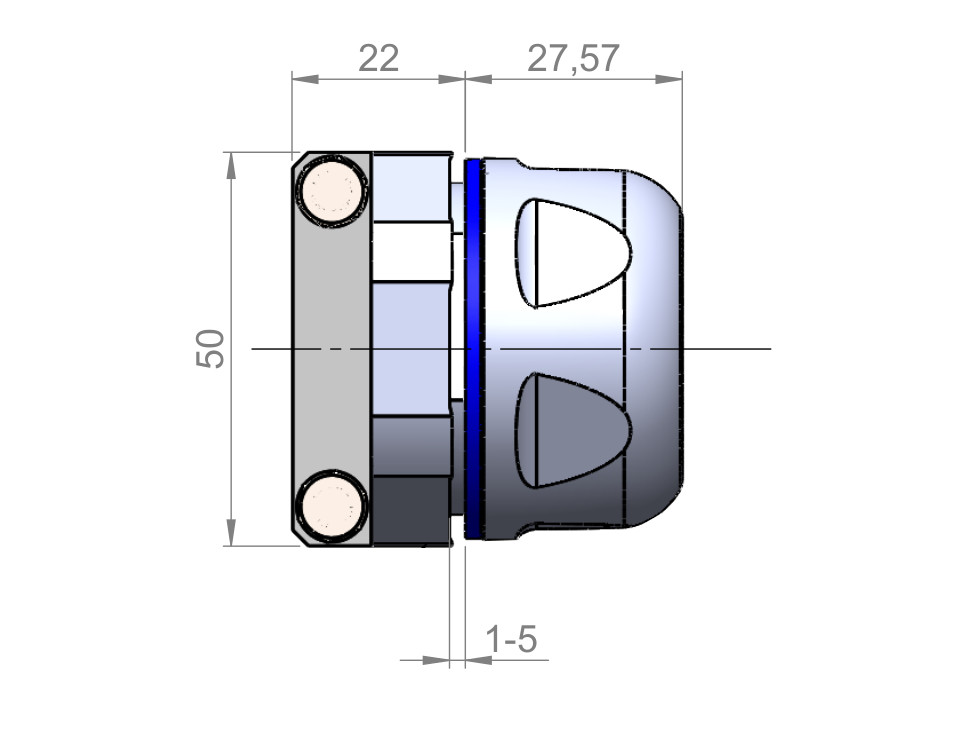

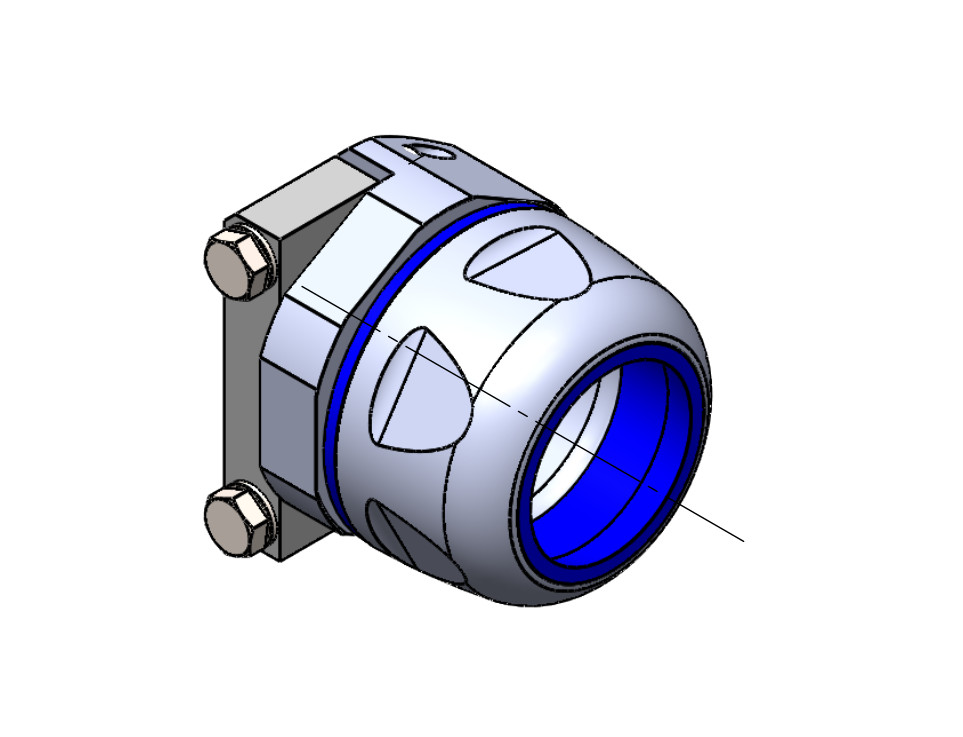

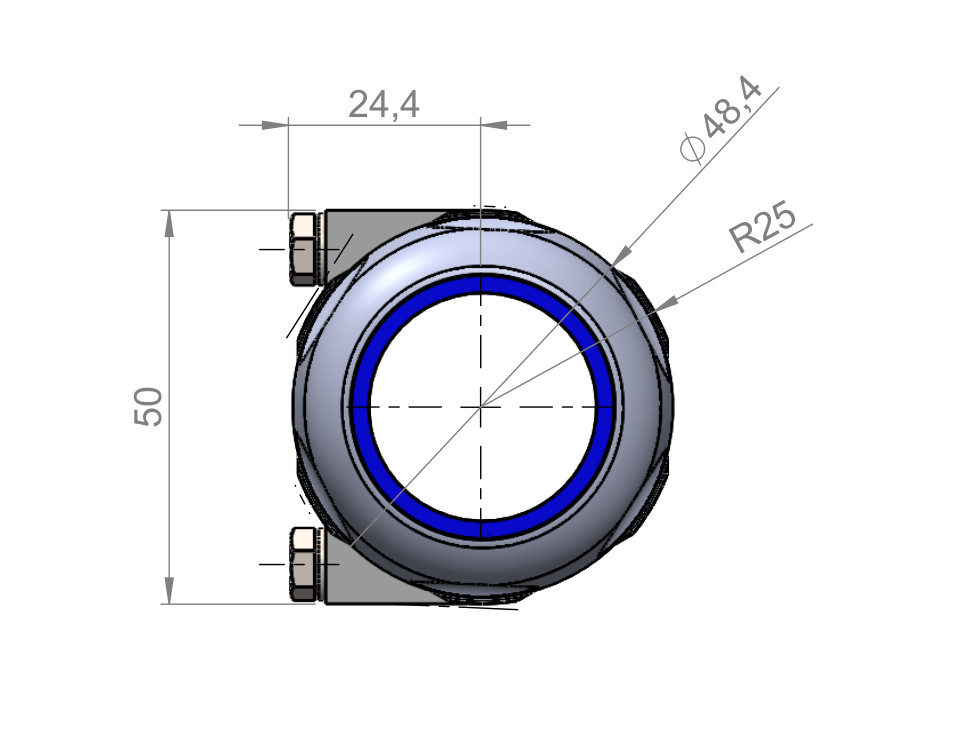

    M40 hygienic mount

    80.006.000

    		 Image Image Image PDF step e_drawing

    Tube mount V2A

    80.006.006

    		 Image Image Image PDF step e_drawing

    Tube connector 90° V2A

    80.006.002

    		 Image Image Image PDF step e_drawing

    Tube end sleeve

    80.005.025 + 80.005.018 + 20.000.103

    		 Image Image Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer

  • FOR CAMERAS

    The Dolphin is also suitable for all smaller cameras that are not listed here.
    • Aida HD-100, HD-NDI
    • Antelope Nano
    • AVT Alvium, Guppy, Mako, Manta, Stingray
    • Axis F1015 (with special mount)
    • Balluf BVS
    • Basler ace, ace2 Pro, Bip2
    • Baumer VLG-23C
    • Canon CX-A0500, U3-A0500
    • Cognex Insight 8000
    • Cubert ULTRIS XM
    • Dahua MV-A5B57MG200E
    • Dalsa Genie Nano, Calibir
    • Datalogic M200/300
    • Dream Chip ATOM one
    • Flir Blackfly, Grashopper
    • Hitachi HV-UHD3O1
    • IDS ueye-SE
    • Ikegami MKC
    • Imaging Solutions Motion Traveller®
    • Imaging Source DxK 24UP031
    • Ja Go/GoX,i CM-040 GE
    • Keyence CA-HX200M
    • Matrix Vision BlueCOUGAR-X
    • MeltViewTM PIXI (with special mount)
    • Novitec u-Nova2
    • OPT-CM1200-GM-04
    • Omron F440-F, FQ2 C-Mount
    • Opto Engineering COE-G/COE-U
    • OptoSigma STC
    • PCO Pixelfly
    • Photonfocus MV2
    • Phytec USB Cam
    • Salrayworks salSHOT
    • Sierra-Olympia TAMARISK®
    • Sensors Unlimited 640CSX
    • Sentech GigE Vision
    • Silios Cicada
    • Smartek GC2
    • SmartMore SMI-CU3-4080P-01
    • Tamron MP3010
    • Toshiba DU, DDU, IK-HD1
    • ToupTek SWIR UMV
    • Ulirvision TC390, TC690G
    • Xenics Crius 1280
    • and many more
