ENCLOSURES FOR CAMERAS

ELEFANT

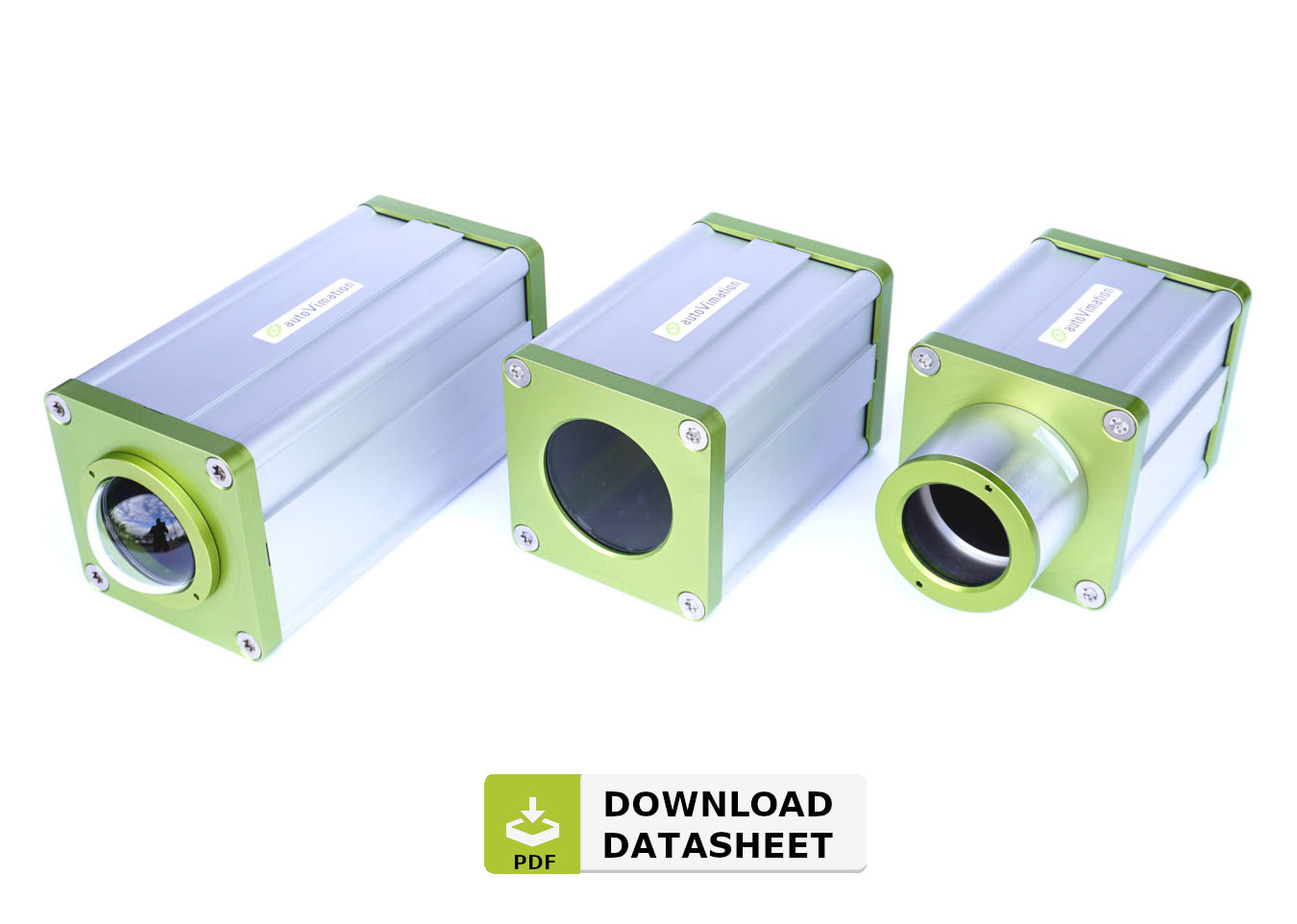

Universal protection enclosure for larger cameras with
up to 100 x 100mm cross section

Quick info

Robust construction

Vibration-proof

90° image rotation

Work.dist. adjustment

IP66 rating

IP67 rating

Excellent heat dissipation

  • Cam mount provides excellent heat dissipation
  • For larger linescan or highspeed cameras up to 100x100mm cross section
  • For lenses up to 120mm diameter
    or zoom lenses with side cable exit
  • 4" BK7 window with 88mm aperture
  • 3" flange with Meganova Ring Light usable
  • 3" BK7/acrylic windows for cams up to 2500nm
  • 3" Germanium windows for LWIR cams 7-14µm
  • 3" Dome window for fisheye lenses
  • 3" IR mirror for heat protection
  • Special lid with circuit for water cooling
  • Enclosure extensions for easy lens access
  • Air nozzles or wind curtain option
  • Pneumatic shutter option
  • Heater or water cooling option
  • Custom color possible
  • Large number of accessories available
  • DRAWINGS & CAD-DATA

    -->
    Enclosure with 4" window Rear Wall A + C + D Drawing
    Step1 eDrawings2
    Elefant S Image  PDF step e_drawing
    Elefant M Image  PDF step e_drawing
    Elefant L Image  PDF step e_drawing
    Enclosure with 3" Flange Rear Wall A + C + D Drawing
    Step1 eDrawings2
    Elefant S Flange Image  PDF step e_drawing
    Elefant M Flange Image  PDF step e_drawing
    Elefant L Flange Image  PDF step e_drawing
    Enclosure with 3" Window + Cooling Rear Wall A + C + D Drawing
    Step1 eDrawings2
    Elefant S Cooling Image  PDF step e_drawing
    Elefant M Cooling Image  PDF step e_drawing
    Elefant L Cooling Image  PDF step e_drawing
    Enclosure with 3" Flange + Cooling Rear Wall A + C + D Drawing
    Step1 eDrawings2
    Elefant S Flange Cooling Image  PDF step e_drawing
    Elefant M Flange Cooling Image  PDF step e_drawing
    Elefant L Flange Cooling Image  PDF step e_drawing
    Accessories for flange version Image Product Number
    Step eDrawings2
    M72 Front Lid
    surcharge (based on 3" Front Lid)
    Image 20.040.018 step e_drawing

    Dome Front Lid
    surcharge (based on 3" Front Lid)
    Image 20.040.015 step e_drawing


    1. The step/eDrawings files contain all rear wall options (A, C, D). Not required cable glands can be hidden.
    2. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • DOCUMENTS

  • ACCESSORIES

    Product Images Drawing Step eDrawings1

    30mm Extension

    15.030.030

    Image Image Image PDF step e_drawing

    60mm Extension

    15.030.085

    Image Image Image PDF step e_drawing

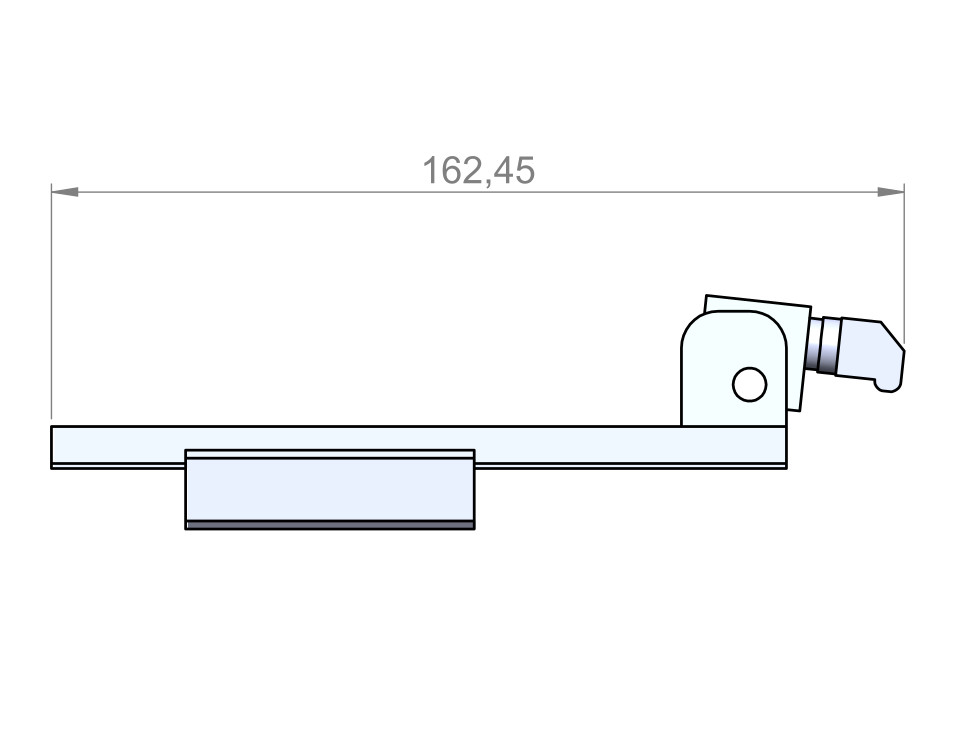

    Dragon High Power Air Nozzle

    for Orca, Megalodon, Stingray, Elefant

    50.100.030

    Image Image Image PDF step e_drawing

    3" Wind Curtain

    50.100.011

    Image Image Image PDF step e_drawing

    Tube for 3" wind curtain

    50.100.018

    Image Image Image PDF step e_drawing

    Controlled Heating Plate
    (from size S)

    70.100.011

    Image Image Image PDF step e_drawing

    Pneumatic Shutter

    for Elefant

    50.200.030

    Image  Image Image PDF step e_drawing



    Mounting Kit 1

    5.010.000

    Image Image Image PDF step e_drawing

    Mounting Kit 2

    5.020.000

    Image Image Image PDF step e_drawing

    Mounting Kit 6

    5.060.000

    Image Image Image PDF step e_drawing

    Mounting Kit 7

    5.070.000

    Image Image Image PDF step e_drawing

    Mounting Kit 9

    5.090.000

    Image Image Image PDF step e_drawing

    Mounting Kit 10

    5.100.000

    Image Image Image PDF step e_drawing

    Mounting Kit 15

    5.150.000

    Image Image Image PDF step e_drawing

    Mounting Kit 16m

    5.160.000m

    Image Image Image PDF step e_drawing

    Mounting Kit 17m

    5.170.000m

    Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • FOR CAMERAS

    The Elefant is also suitable for all smaller cameras that are not listed here.
    • Adimec Diamond, Sapphire, Quartz
    • Aida UHD6G-X12L
    • AOS J-PRI, L-PRI, M-PRI
    • AVMATRIX Eagle T10
    • AVT Goldeye XSWIR
    • Basler Boost, Racer 2
    • Birddog MAKI Ultra
    • Blue Vision BVC 3xxx/6xxx
    • Bresser MikroCam PRO
    • BZB Gear Maestro, Packshot C10X
    • Canon ML-100, ML-105
    • Chromasens allPIXA, chromaPIXA
    • Crevis HX, LV
    • CIS VCC-127CXP, VCC-250CXP
    • Dalsa Linea 4K/8K/16K, Piranha 4/XL
    • Fluke ThermoView TV40
    • Freefly Ember
    • Hamamatsu Orca Fire/Flash, TDI
    • HAIP BlackIndustry NIR/VNIR V2
    • Hanwha Wisenet XNZ-6320
    • HIK MV-CL084-91GM
    • HinaLea 4250, 4400 SWIR
    • Illunis CMV
    • IOI Flare CL12MP/CX
    • iRayple Line Scan Cameras 8K
    • ISVI IC-X25B-CL
    • IX Cameras i-SPEED 211
    • Jai Sweep 3-Sensor/4-Sensor, Wave
    • Jenoptik Blackbird Precision, IR-TCM
    • JOUAV AQ600
    • Lumenera Lg11059
    • Mikrotron Eosens
    • Novitec i-Nova3 Zoom
    • OPT F-Mount cameras
    • OptiTrack Primex 13
    • Optronis CamPerform CP
    • Optronis CamRecord Runner/Sprinter
    • pco. digimax CS, flim
    • Phantom S200, S210
    • Phasics SID4 eSWIR, DWIR
    • Photonfocus MV-8
    • Procemex Flex
    • Sierra-Olympia VAYU HD-I
    • SmartMore SMI-C10GiL-8K-01M
    • SVS Vistek SHR
    • Vieworks VT
    • Z CAM E2
    • and many more
