ENCLOSURES FOR CAMERAS

MAMMOTH

Protection for large MV cameras of up to 90 x 150mm cross section

Quick info

Robust construction

Vibration-proof mounting

90° image rotation

Work.dist. adjustment

IP65 rating

Excellent heat dissipation

  • Cam mount provides good heat dissipation
  • For cameras up to 90x150mm cross section
  • For lenses up to 90mm diameter
  • BK7/acrylic windows for cameras up to 2500nm
  • Germanium windows for LWIR cameras 7-14µm
  • Dome window for fisheye lenses
  • With Orca extension Meganova usable
  • Heater or water cooling option
  • Large number of accessories available

  • DRAWINGS & CAD DATA

    Enclosure Type Rear Wall C Drawing
    		 Step eDrawings1
    Mammut L Image  PDF step e_drawing

    Accessories Image Product Number
    		 Step eDrawings2
    M72 Front Lid
    surcharge (based on 3" Front Lid)     		Image 20.040.018 step e_drawing

    Dome Front Lid
    surcharge (based on 3" Front Lid)     		Image 20.040.015 step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer

  • DOCUMENTS

    PDFDatasheet

    PDFAssembly Instructions

  • ACCESSORIES

    Product Layout Drawing Step eDrawings1

    30mm extension

    15.030.030

    		 Image Image Image PDF step e_drawing

    60mm extension

    15.030.085

    		 Image Image Image PDF step e_drawing

    Tube for 2" wind curtain

    50.100.017

    		 Image Image Image PDF step e_drawing

    3" wind curtain

    for Orca, Stingray, Mammut, Chameleon L

    50.100.011

    		  Image  Image Image PDF step e_drawing

    Tube for 3" wind curtain

    50.100.018

    		 Image Image Image PDF step e_drawing

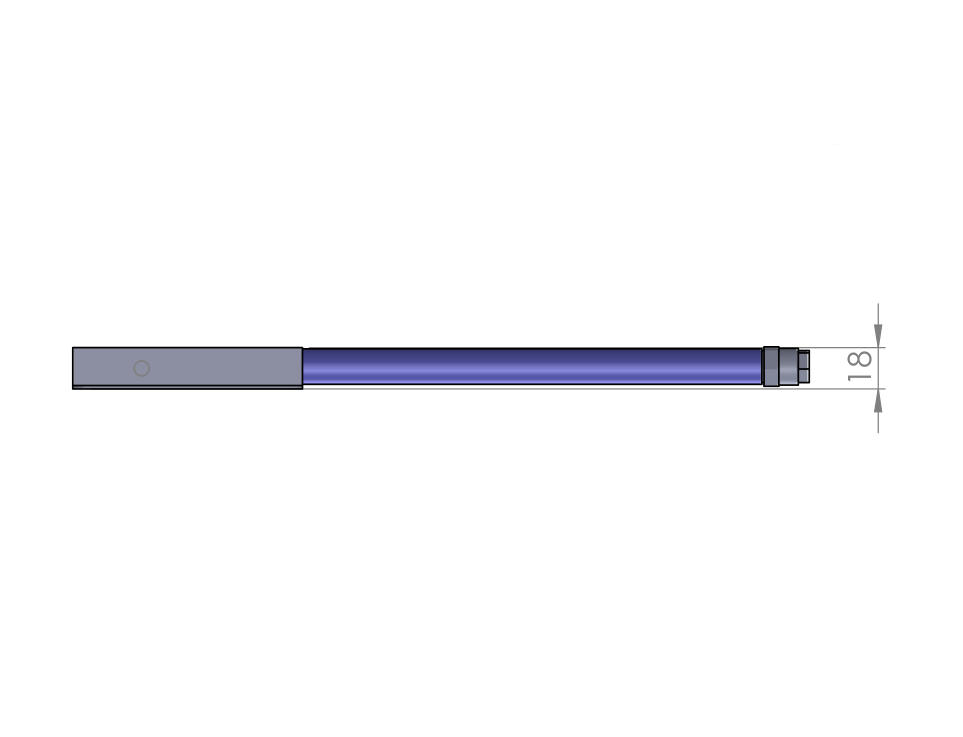

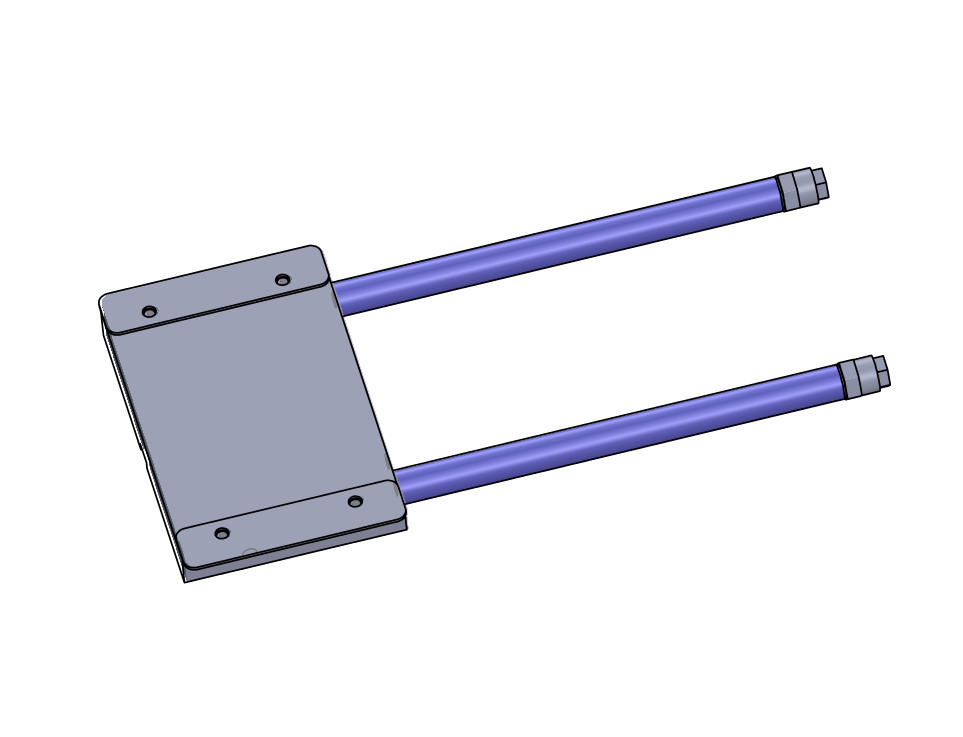

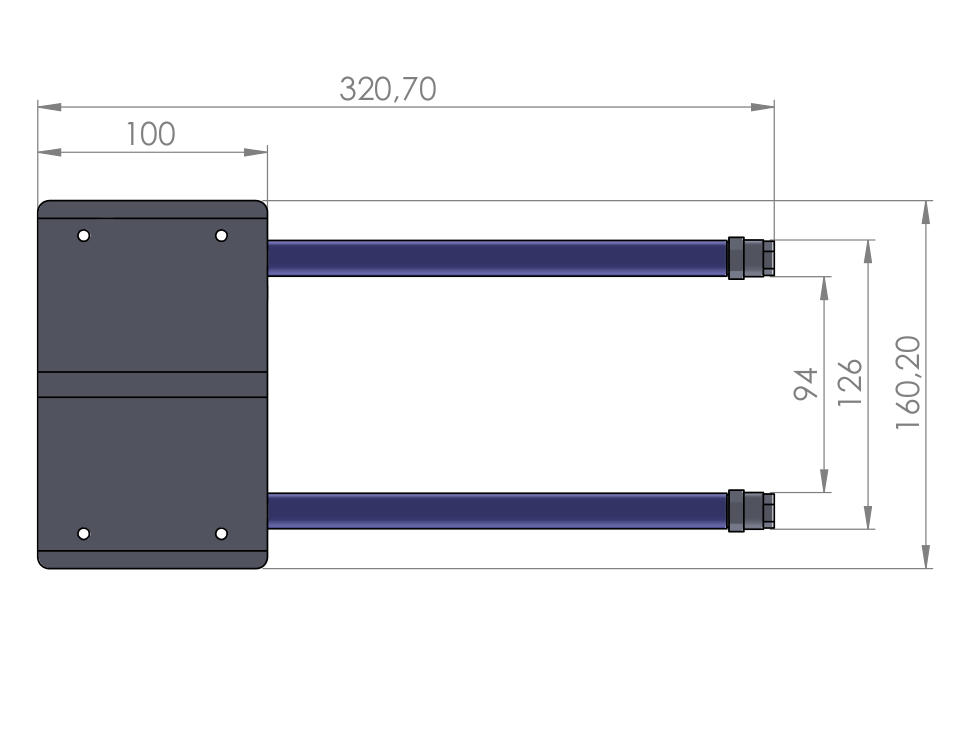

    Water cooling module

    60.100.020

    		 Image Image Image PDF step e_drawing



    Mounting Kit 1

    5.010.000

    		 Image Image Image PDF step e_drawing

    Mounting Kit 2

    5.020.000

    		 Image Image Image PDF step e_drawing

    Mounting Kit 6

    5.060.000

    		 Image Image Image PDF step e_drawing

    Mounting Kit 7

    5.070.000

    		 Image Image Image PDF step e_drawing

    Mounting Kit 9

    5.090.000

    		 Image Image Image PDF step e_drawing

    Mounting Kit 10

    5.100.000

    		 Image Image Image PDF step e_drawing

    Mounting Kit 15

    5.150.000

    		 Image Image Image PDF step e_drawing

    Mounting Kit 16m

    5.160.000m

    		 Image Image Image PDF step e_drawing

    Mounting Kit 17m

    5.170.000m

    		 Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer

  • FOR CAMERAS

    The Mammoth is also suitable for all smaller cameras that are not listed here.
    • AV Bonito Pro
    • Axis Q1775
    • Basler Runner
    • BlueVision BV-C5200
    • Dalsa Linea
    • e2v Eilixa+
    • Eosens Mini
    • Flir A6xx
    • Jai Spark
    • Lumenera Lg11059
    • Optronis CP
    • Vieworks VP
    • Vision&Control
    • pictor C300/T300
    • Xenics Xeva
    • Ximea XiD
    • and many more
