ENCLOSURES FOR CAMERAS

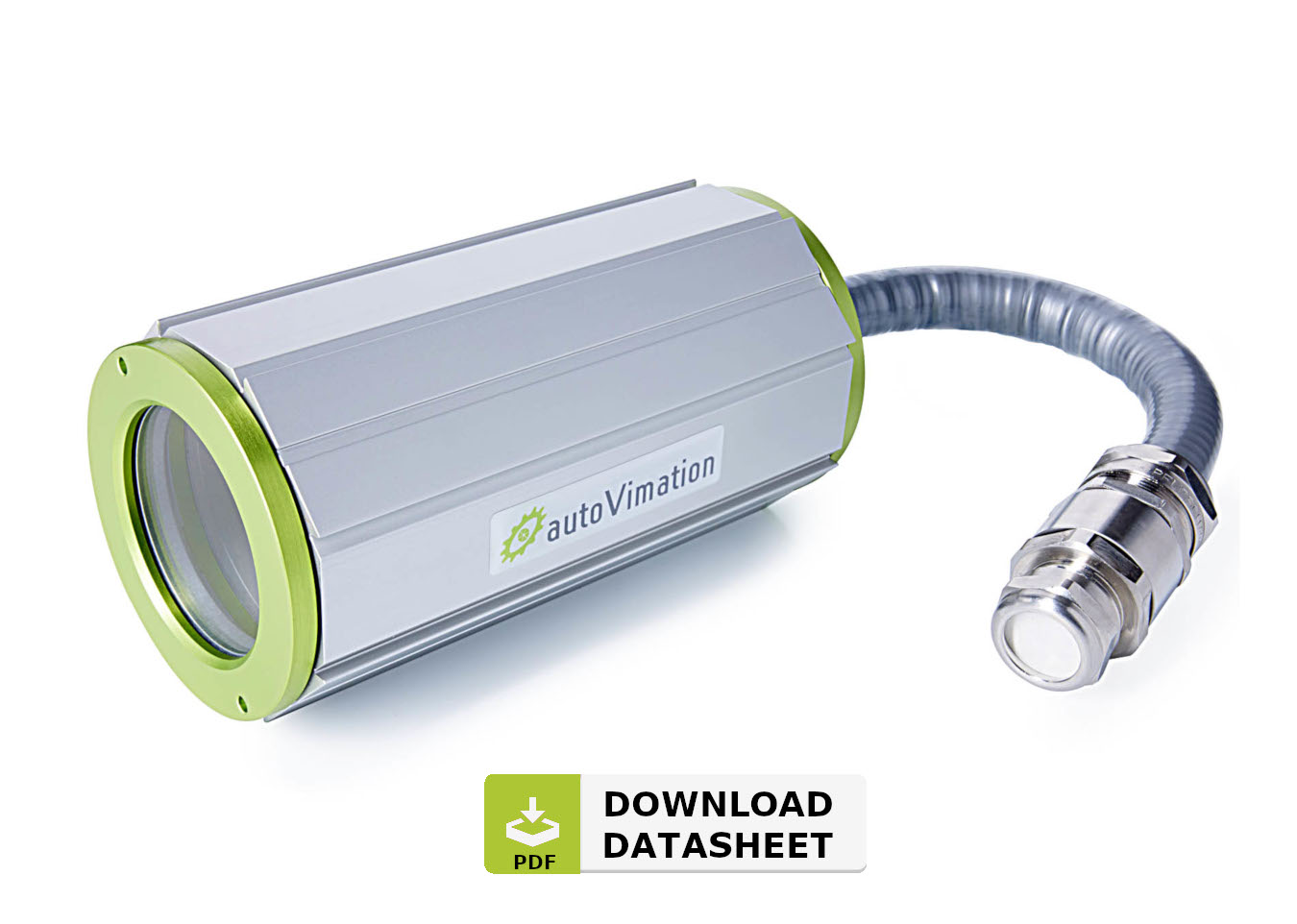

NAUTILUS

IP68 protection for camera underwater use

Quick info

Robust construction

Vibration-proof mounting

90° image rotation

Work.dist. adjustment

IP66 rating

IP68 rating

Excellent heat dissipation

  • Cam mount provides excellent heat dissipation
  • For cameras up to 61x61mm cross section (depending on edge radius)
  • For lenses up to 85mm diameter
  • Double seal system to ensure IP68 standard
  • Tested for 12h in 10m water depth
  • BK7/acrylic windows for cameras up to 2500nm
  • Germanium windows for LWIR cameras 7-14µm
  • Extra anodized for salt/chlorine water use
  • Metal conduit tube system
  • Large number of accessories available
  • DRAWINGS & CAD DATA

    Enclosure Type Metal Conduit Tube System Drawing
    Step eDrawings1
    Nautilus Image  PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • DOCUMENTS

  • ACCESSORIES

    Product Images Drawing Step eDrawings1

    Tilted reflector

    20.020.004

    Image Image Image PDF step e_drawing

    Position ring

    20.040.002

    Image Image Image PDF step e_drawing

    Sun roof M

    20.011.002

    Image Image Image PDF step e_drawing

    Air nozzle

    50.100.025

    Image Image Image PDF step e_drawing

    Dragon High Power Air Nozzle

    for Orca, Megalodon, Stingray, Elefant

    50.100.030

    Image Image Image PDF step e_drawing

    3" wind curtain

    50.100.011

    Image Image Image PDF step e_drawing

    Tube for 3" wind curtain

    50.100.018

    Image Image Image PDF step e_drawing

    Shutter

    50.200.021

    Image Image Image PDF step e_drawing



    Mounting Kit 1

    5.010.000

    Image Image Image PDF step e_drawing

    Mounting Kit 2

    5.020.000

    Image Image Image PDF step e_drawing

    Mounting Kit 6

    5.060.000

    Image Image Image PDF step e_drawing

    Mounting Kit 7

    5.070.000

    Image Image Image PDF step e_drawing

    Mounting Kit 9

    5.090.000

    Image Image Image PDF step e_drawing

    Mounting Kit 10

    5.100.000

    Image Image Image PDF step e_drawing

    Mounting Kit 15

    5.150.000

    Image Image Image PDF step e_drawing

    Mounting Kit 16m

    5.160.000m

    Image Image Image PDF step e_drawing

    Mounting Kit 17m

    5.170.000m

    Image PDF step e_drawing

    1. Software for 3D imaging with measuring option: Free Download eDrawings-Viewer
  • FOR CAMERAS

    The Nautilus is also suitable for all smaller cameras that are not listed here.
    • Aida UHD 3XL/200/6G-200
    • Alkeria Celera, Necta
    • Antelope Pico
    • AOS Promon 502
    • Automation Technology C5, C6
    • AVT Prosilica
    • Basler Racer
    • Baumer HXC, LX
    • Blue Vision BV-C3xxH
    • Bresser MikroCam SP
    • CIS VCC-12CXP4x
    • Cognex Dataman 300
    • Crevis HG, HV, TC
    • Daheng Mars
    • Dalsa Boa, Linea Lite
    • Datalogic M580
    • Ditect HAS-U1, HAS-U2
    • E2V DIVIINA
    • Emergent HB, Pace
    • EomaxTM WolfpackTM CK, CL, CT
    • First Light C-Red 3
    • Flir A50/70, A3xx, Oryx
    • HIK MV-CL022-91GM
    • Hitachi HV-Fxxx
    • ICI FMX, Titan 1280 P
    • IDS ueye-FA
    • IDT Crash Cam MiniTM
    • IFM O2Dxxx
    • Imaging Source DMK Z12
    • Imperx Bobcat
    • INO MICROXCAM-384i-MLWIR
    • I-Pro WV-U11xxx
    • Jai AD-130GE
    • Kappa Zelos
    • Kaya Iron
    • Keyence IV2, IV3, IV-G, IV-HG, XG-HL
    • Leopard Imaging LI-IMX530-GMSL2-NL
    • LMP HD1200
    • Lucid Atlas, Helios
    • Micro-Epsilon TIM
    • NET iam
    • NIT MC1003, WiDy SWIR/SenS, SenS 1280
    • Novitec i-Nova2/i-Nova4
    • Opto Engineering Itala
    • Optris Pi
    • Optronis CycloneFiber-2
    • Photonis Nocturne U3
    • Photonfocus MV-1, MV-3, MV-4
    • Pixellink PL-B781, PL-95xx
    • Raptor Owl
    • Salrayworks focal-, ray-, wideSHOT
    • Satir UPC
    • Seek Guardian G300
    • Sensopoart V10, V20
    • Sensors Unlimited 1280JSX
    • Sick Ranger E50, Ranger 3
    • Silios CMS, Toucan
    • Sinacam HDC-1
    • Skoopia 21Z3
    • Sony FCB
    • SVS Vistek Exo
    • SWIR Vision Systems Acuros CQD
    • Vieworks VTC
    • ViewZ VZ-BCHS
    • Vision&Control pictor M
    • Xenics Gobi 640, Ceres T 640
    • Ximea xiX (EF-Mount)
    • Xiris XVC-1000/1100
    • and many more
