SCHUTZGEHÄUSE FÜR KAMERAS

ORCA

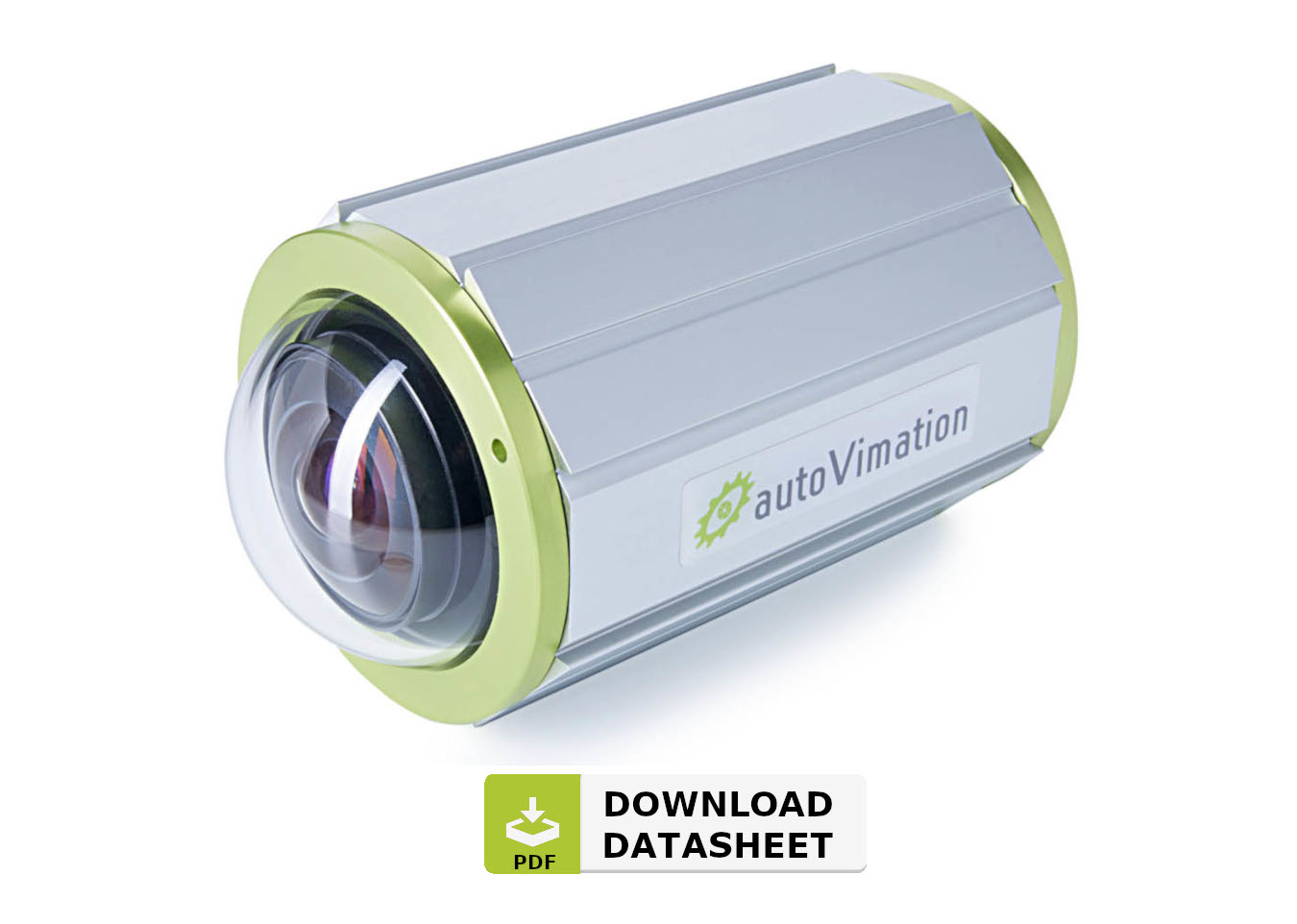

IP66 + IP67 Kameragehäuse für größere Sensoren
bis zu 61 x 61mm Querschnitt

Kurz-Info

Robuste Bauweise

Vibrations-sicher

90° Bilddrehung

Einstellbarer Arbeitsabstand

Schutzgrad IP66

Schutzgrad IP67

Exzellente Wärmeableitung

  • Montage mit exzellenter Wärmeableitung
  • Für Kameras bis zu 61x61mm Querschnitt
  • Für Objektive bis 85mm Durchmesser
  • Optimiert für das Meganova Ringlicht
  • Große Front- und Rückdeckelauswahl
  • BK7/Acrylfenster für Kameras bis 2500nm
  • Saphirfenster für SWIR bis 7µm
  • Germaniumfenster für LWIR bis 7-14µm
  • Kuppelfenster für Fischaugenobjektive
  • Doppelfenster Germanium/Glas für Flir A50/70
  • Verlängerungen für leichten Objektivzugriff
  • Optional Abblasvorichtungen und Schutzklappe
  • Heizungs- und Wasserkühloption
  • Wunschfarbe möglich
  • Vielfältiges Zubehör erhältlich
  • ZEICHNUNGEN & CAD-DATEN

    Gehäusetyp Rückwand A + C + D + E Zeichnung
    Step1 eDrawings2
    Orca S Image  PDF step e_drawing
    Orca M Image  PDF step e_drawing
    Orca L Image  PDF step e_drawing
    Orca XL Image  PDF step e_drawing

    M72 Frontdeckel Abbildung Artikelnummer
    Step eDrawings2
    Aufpreis (basierend auf 3" Frontdeckel) Image 20.040.018 step e_drawing
    Domedeckel
    Aufpreis (basierend auf 3" Frontdeckel) Image 20.040.015 step e_drawing
    Rückwand E
    Aufpreis (basierend auf Rückwand A, C, D) Image 20.040.014 step e_drawing

    1. Die step/eDrawings-Dateien enthalten die Frontdeckel (2", 3") und die Rückwände (A, C, D). Nicht benötigte Teile können ausgeblendet werden.
    2. Software zur 3D-Darstellung mit Meßfunktion: Kostenloser Download eDrawings-Viewer
  • DOKUMENTE

  • ZUBEHÖR

    Produkt Ansicht Zeichnung Step eDrawings1

    Umlenkspiegel

    20.020.004

    Image Image Image PDF step e_drawing

    30mm Verlängerung

    15.030.030

    Image Image Image PDF step e_drawing

    60mm Verlängerung

    15.030.085

    Image Image Image PDF step e_drawing

    Positionierring

    20.040.002

    Image Image Image PDF step e_drawing

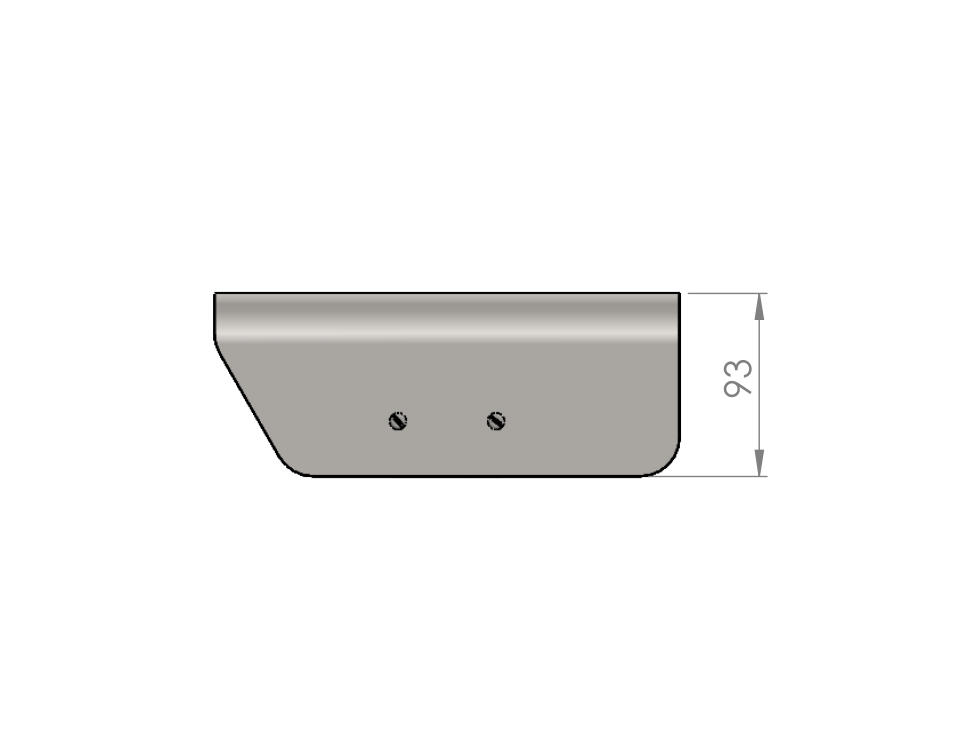

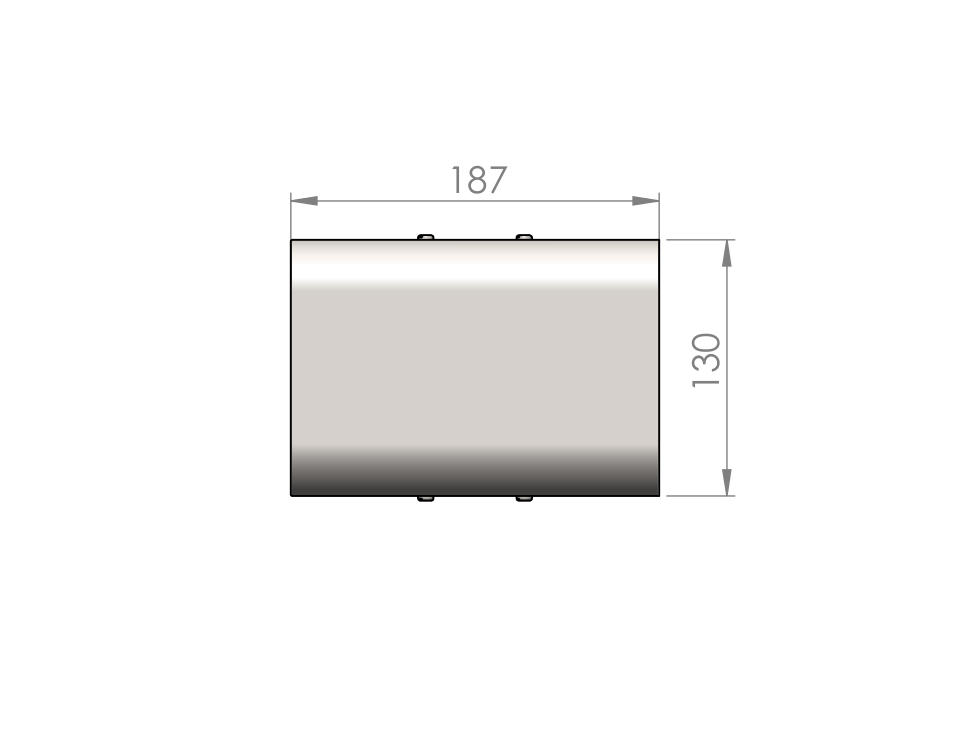

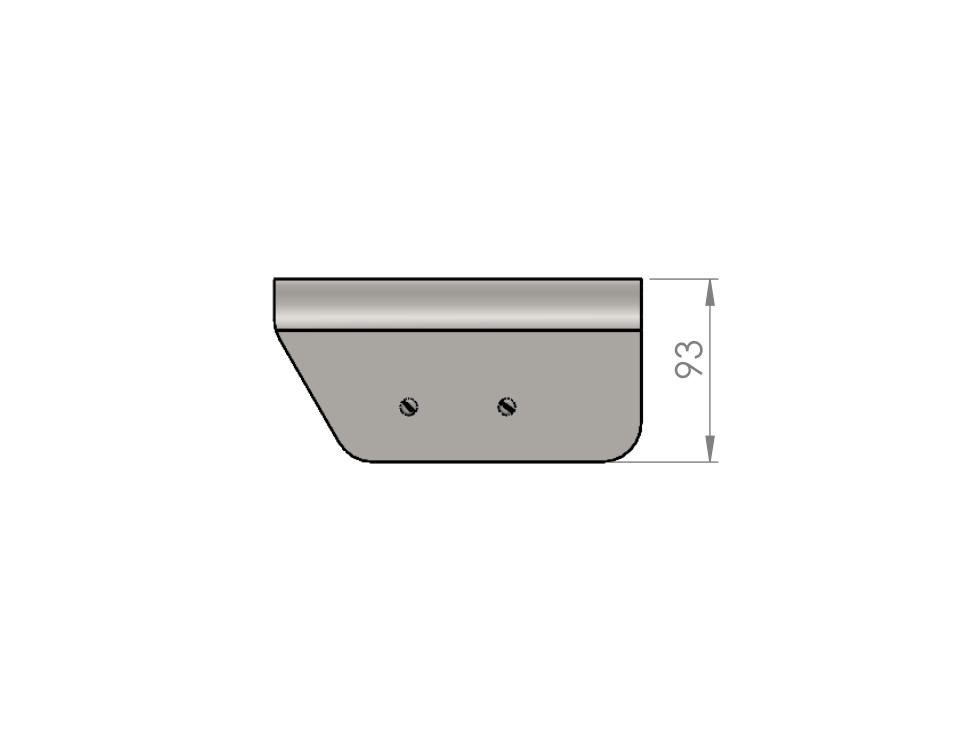

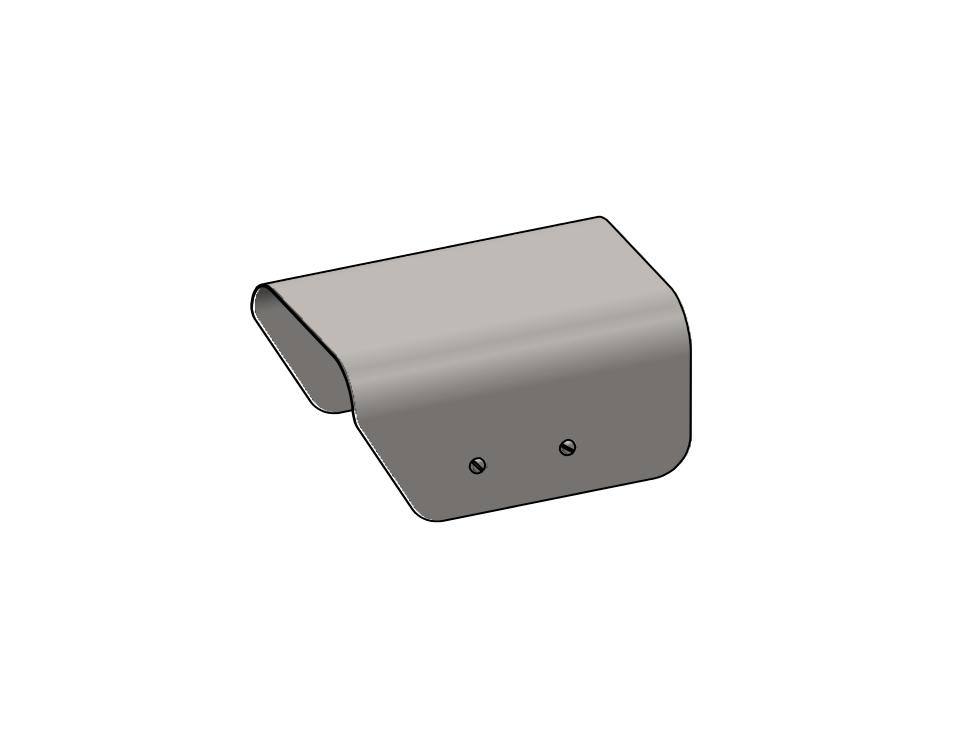

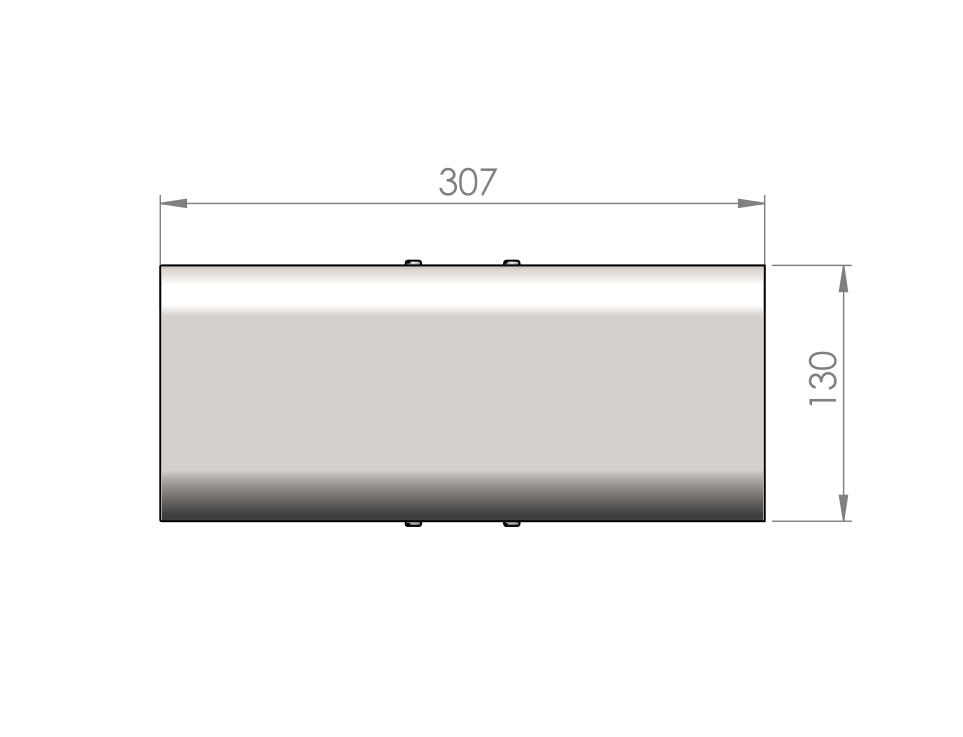

    Sonnendach S

    20.011.001

    Image Image Image PDF step e_drawing

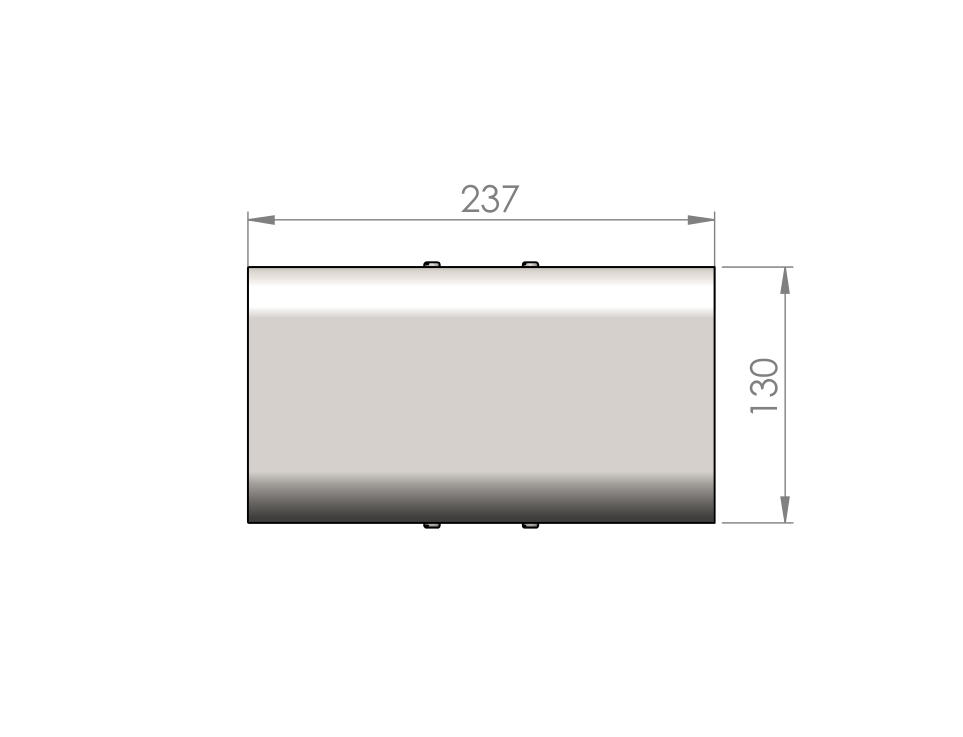

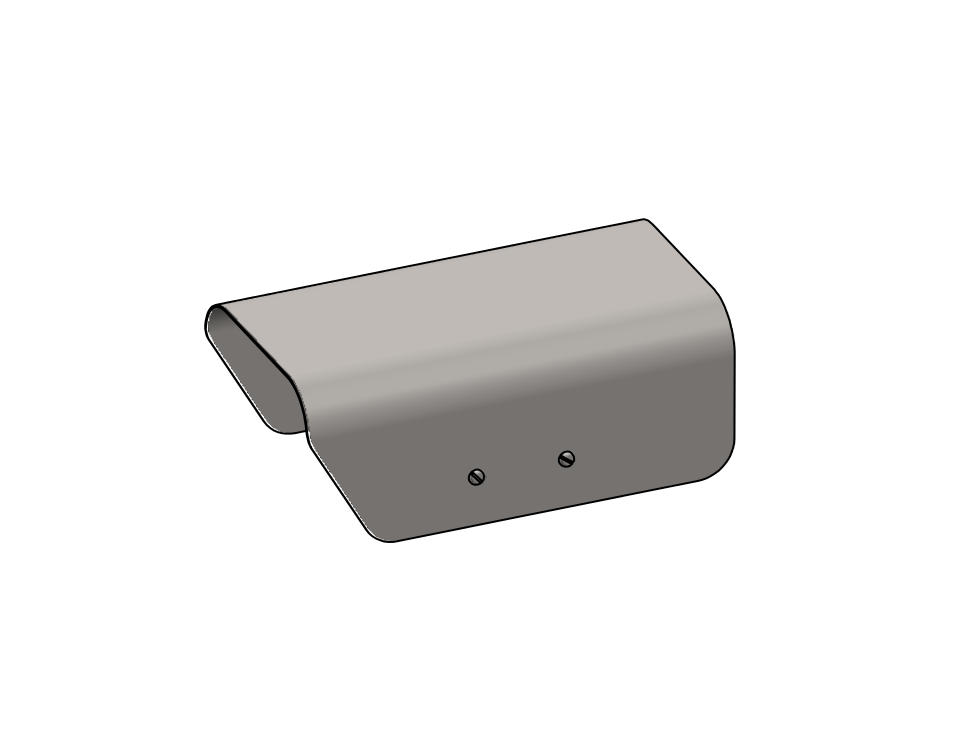

    Sonnendach M

    20.011.002

    Image Image Image PDF step e_drawing

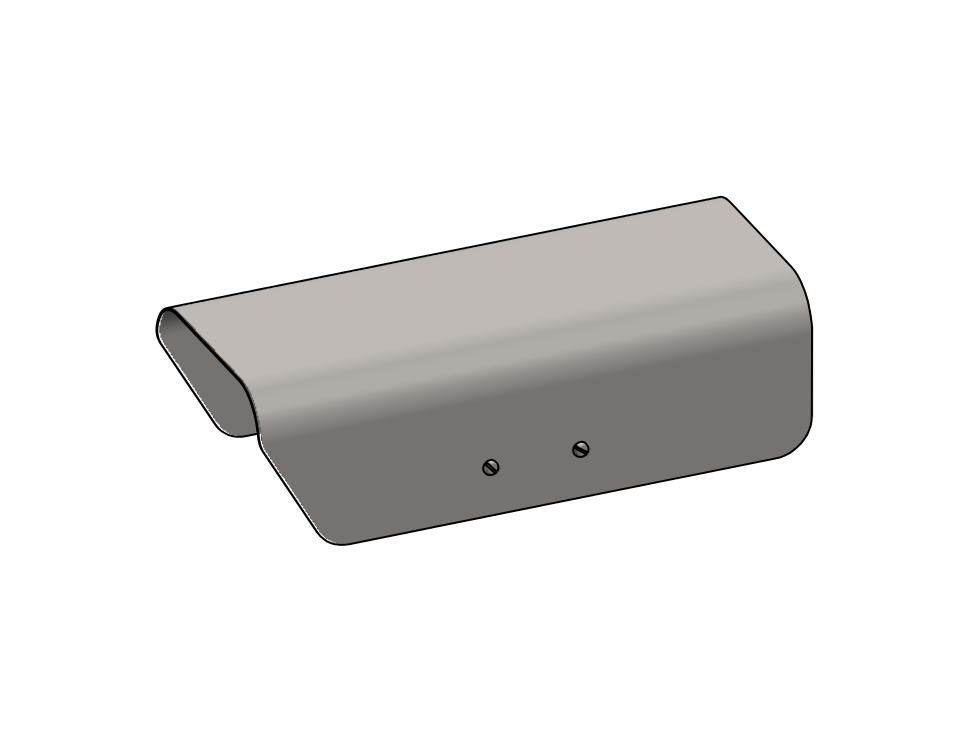

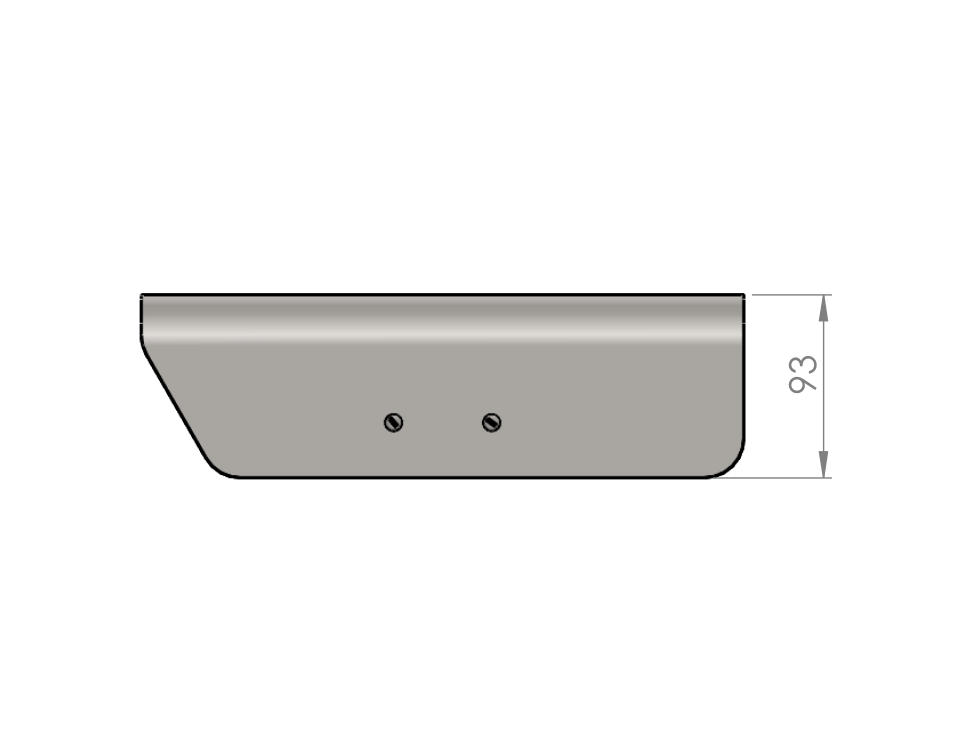

    Sonnendach L

    20.011.003

    Image Image Image PDF step e_drawing

    Luftdüse

    50.100.025

    Image Image Image PDF step e_drawing

    Dragon High Power Luftdüse

    50.100.030

    Image Image Image PDF step e_drawing

    2" Windvorhang

    50.100.010

    Image Image Image PDF step e_drawing

    3" Windvorhang

    50.100.011

    Image Image Image PDF step e_drawing

    Schutzklappe

    50.200.021

    Image Image Image PDF step e_drawing

    Wasserkühlmodul
    (ab Größe M)

    60.100.010

    Image Image Image PDF step e_drawing

    Geregelte Heizplatte
    für Salamander, Gecko und Orca
    (ab Größe S)

    70.100.018

    Image Image Image PDF step e_drawing



    Mounting Kit 1

    5.010.000

    Image Image Image PDF step e_drawing

    Mounting Kit 2

    5.020.000

    Image Image Image PDF step e_drawing

    Mounting Kit 6

    5.060.000

    Image Image Image PDF step e_drawing

    Mounting Kit 7

    5.070.000

    Image Image Image PDF step e_drawing

    Mounting Kit 9

    5.090.000

    Image Image Image PDF step e_drawing

    Mounting Kit 10

    5.100.000

    Image Image Image PDF step e_drawing

    Mounting Kit 15

    5.150.000

    Image Image Image PDF step e_drawing

    Mounting Kit 16m

    5.160.000m

    Image Image Image PDF step e_drawing

    Mounting Kit 17m

    5.170.000m

    Image PDF step e_drawing

    1. Software zur 3D-Darstellung mit Meßfunktion: Kostenloser Download eDrawings-Viewer
  • FÜR KAMERAS

    Das Orca ist auch für alle kleineren Kameras geeignet, die hier nicht aufgeführt sind.
    • Aida UHD 3XL/200/6G-200
    • Alkeria Celera, Necta
    • Antelope Pico
    • AOS Promon 502
    • Automation Technology C5, C6
    • AVT Prosilica
    • Basler Racer
    • Baumer HXC, LX
    • Blue Vision BV-C3xxH
    • Bresser MikroCam SP
    • Cognex Dataman 300
    • Crevis HG, HV, TC
    • Daheng Mars
    • Dalsa Boa, Linea Lite
    • Datalogic M580
    • Ditect HAS-U1, HAS-U2
    • E2V DIVIINA
    • Emergent HB
    • EomaxTM WolfpackTM CK, CL, CT
    • First Light C-Red 3
    • Flir A50/70, A3xx, Oryx
    • HIK MV-CL022-91GM
    • Hitachi HV-Fxxx
    • ICI FMX, Titan 1280 P
    • IDS ueye-FA
    • IDT Crash Cam MiniTM
    • IFM O2Dxxx
    • Imaging Source DMK Z12
    • Imperx Bobcat
    • INO MICROXCAM-384i-MLWIR
    • I-Pro WV-U11xxx
    • Jai AD-130GE
    • Kappa Zelos
    • Kaya Iron
    • Keyence IV2, IV3, IV-G, IV-HG, XG-HL
    • LMP HD1200
    • Lucid Atlas, Helios
    • Micro-Epsilon TIM
    • NET iam
    • NIT MC1003, WiDy SWIR/SenS, SenS 1280
    • Opto Engineering Itala
    • Optris Pi
    • Optronis CycloneFiber-2
    • Photonis Nocturne U3
    • Photonfocus MV-1, MV-3, MV-4
    • Pixellink PL-B781, PL-95xx
    • Raptor Owl
    • Salrayworks focal-, ray-, wideSHOT
    • Satir UPC
    • Seek Guardian G300
    • Sensopoart V10, V20
    • Sensors Unlimited 1280JSX
    • Sick Ranger E50, Ranger 3
    • Silios CMS, Toucan
    • Sinacam HDC-1
    • Skoopia 21Z3
    • Sony FCB
    • SVS Vistek Exo
    • SWIR Vision Systems Acuros CQD
    • Vieworks VTC
    • ViewZ VZ-BCHS
    • Vision&Control pictor M
    • Xenics Gobi 640
    • Ximea xiX (EF-Mount)
    • Xiris XVC-1000/1100
    • u.v.m.
